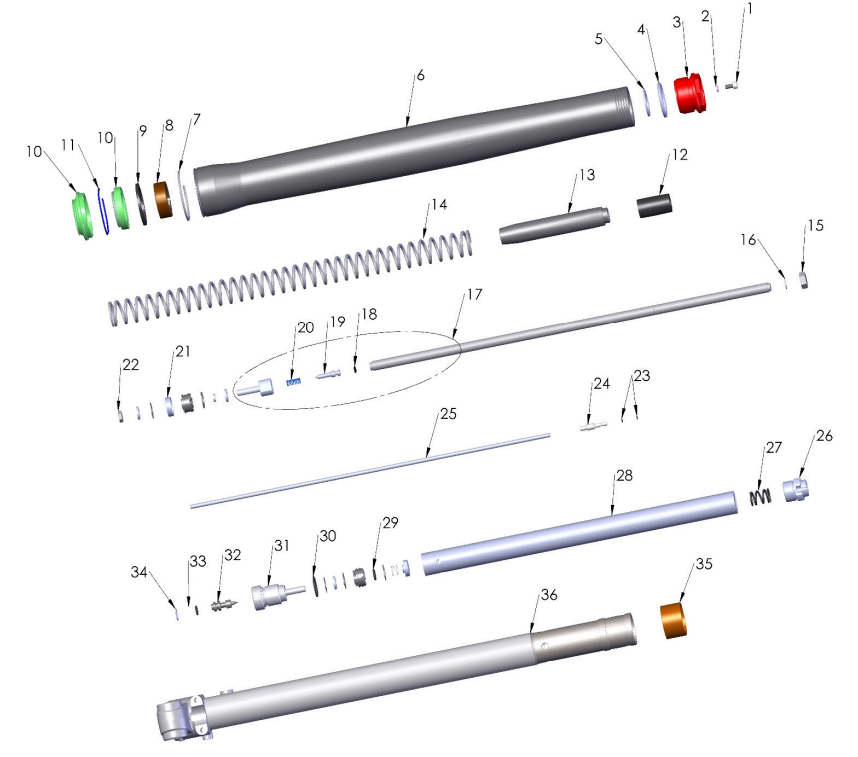

2024 CX50JR Parts – Forks – Leg Assembly – Non-BrakeSide

Note: Products marked with an asterisk (*) are currently out of stock and on backorder. They may take additional time to deliver and will not arrive with the rest of your order.

Ref #	Part #	Product	Price
1	HCBC0408	M4 X 8 SHCS CLEAR ZINC	$1.09
2	ZCKG0001	GASKET BLEED SCREW FORK	$0.86
3	KCCS0004S	FORK CAP - SMART BOTTOMING 32MM USD	$87.89
4	ZCMUOR18	O-RING - 3MM X 27MM ID	$2.20
7	KCCS0035	FORK - RING CLIP - OUTER WEAR 32MM	$5.43
8	KCCS0006	FORK - GLIDE RING BOTTOM 32MM	$14.33
9	KCCS0032	SPACER - FORK SEAL- 32MM	$7.65
11	KCCS0002	FORK - SEAL RETAINER RING CLIP - 32MM	$6.54
12	KCC60067	FORK - JOUNCE BUMPER	$8.32
13	KCCS0013	GUIDE - FORK SPRING - 32MM	$22.12
14	KCCJ3221	SPRING - FORK 0.21 KG/MM - 32MM JR/P3	$48.88
14	KCCJ3218	SPRING - FORK 0.18 KG/MM - 32MM JR/P3	$48.88
14	KCCJ3225	SPRING - FORK 0.25 KG/MM - 32MM JR/P3	$48.88
15	HCNJ3824	NUT JAM 3/8-24 CLASS 8	$3.32
16	KCC60068	FORK - RING CLIP - SPRING GUIDE RETAINER	$4.76
17	KAC60003	DAMPER ROD ASSEMBLY 37MM	$98.46
18	KCC60058	O-RING MID-VALVE ADJ NEEDLE	$1.09
19	KCC60050	NEEDLE - FORK MID-VALVE ADJUSTER	$27.68
20	KCC60051	SPRING - FORK ADJUSTER NEEDLE	$5.43
21	KCCS0018	FORK - MID VALVE GLIDE RING	$9.88
22	HCNJ0601	6MM JAM NUT	$1.09
23	BCKG0033	ORING - 2.1MM ID - 1MM - BUNA	$2.20
24	KCCS0033	FORK ADJUSTMENT SCREW TOP - SHORT	$40.59
25	KCC60049	FORK ADJUSTER PIN	$19.90
26	KCMU0013	FORK - CARTRIDGE CAP	$32.14
27	KCKG0050	FORK - TOP OUT SPRING	$8.77
Not shown	KCCJ0002	FORK - TRAVEL LIMITER SPACER	$15.44
28	KCKG0019	CARTRIDGE TUBE - JR KG 65 FORKS - ALUM	$49.94
29	KCMU0021	O-RING - FORK - BASE VALVE & COMP ADJ	$1.09
30	KCC60057	FORK - BOTTOM PLUG - SMART LEG	$32.14
31	KCCS0007	FORK - GLIDE RING TOP 32MM	$14.33
32	KAMU0004	FORK LOWER COMPLETE NON-BRAKE SIDE - HOLLOW AXLE	$216.86
TOOL	MCMUTL39	TOOL - FORK SEAL SWIPER DRIVER - 32MM	$61.18
TOOL	MCMUTL32	TOOL - FORK CAP WRENCH - 32MM	$17.67
TOOL	MCMUTL04	TOOL - CARTRIDGE TUBE WRENCH	$49.94
KIT 1	KKCS0004	FORK - SEAL & SWIPER KIT - 32MM SKF (1 seal 1 swiper)	$39.93
