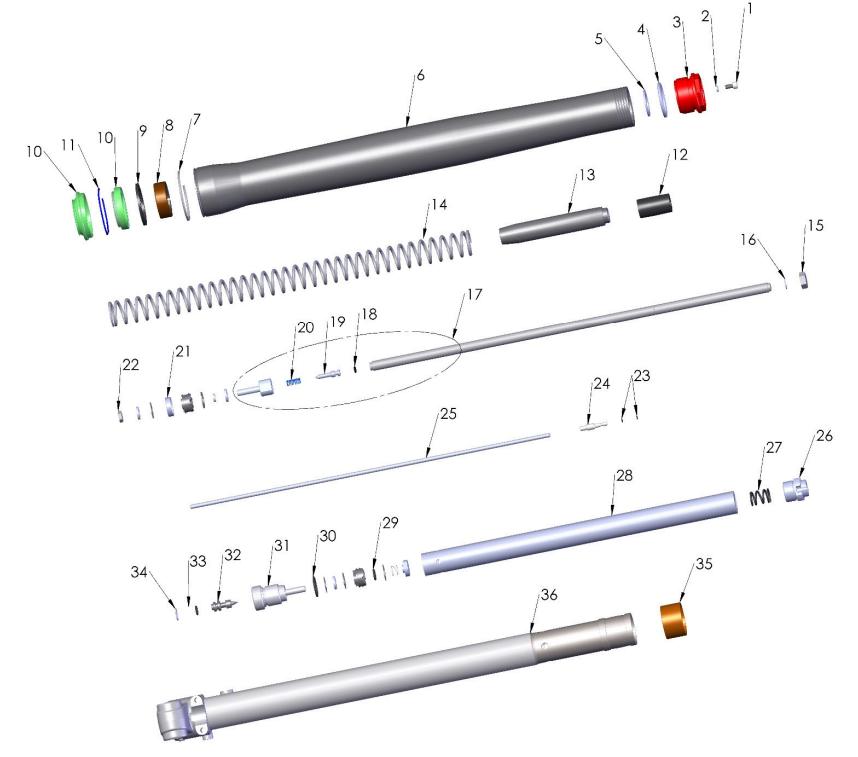

2024 CX50JR Parts – Forks – Leg Assembly – Brake Side

2024 CX50JR Parts – Forks – Leg Assembly – Brake Side
Add to Cart
Note: Products marked with an asterisk (*) are currently out of stock and on backorder. They may take additional time to deliver and will not arrive with the rest of your order.
Ref # Part # Image Product Price Quantity
1 HCBC0408 M4 X 8 SHCS CLEAR ZINC $1.09
2 ZCKG0001 GASKET BLEED SCREW FORK $0.86
3 KCCS0004C FORK CAP - CONVENTIONAL REBOUND 32MM USD $87.89
4 ZCMUOR18 O-RING - 3MM X 27MM ID $2.20
7 KCCS0035 FORK - RING CLIP - OUTER WEAR 32MM $5.43
8 KCCS0006 FORK - GLIDE RING BOTTOM 32MM $14.33
9 KCCS0032 SPACER - FORK SEAL- 32MM $7.65
10 KKCS0004 FORK - SEAL & SWIPER KIT - 32MM SKF (1 seal 1 swiper) $39.93
11 KCCS0002 FORK - SEAL RETAINER RING CLIP - 32MM $6.54
12 KCC60067 FORK - JOUNCE BUMPER $8.32
13 KCCS0013 GUIDE - FORK SPRING - 32MM $22.12
14 KCCJ3221 SPRING - FORK 0.21 KG/MM - 32MM JR/P3 $48.88
14 KCCJ3218 SPRING - FORK 0.18 KG/MM - 32MM JR/P3 $48.88
14 KCCJ3225 SPRING - FORK 0.25 KG/MM - 32MM JR/P3 $48.88
15 HCNJ3824 NUT JAM 3/8-24 CLASS 8 $3.32
16 KCC60068 FORK - RING CLIP - SPRING GUIDE RETAINER $4.76
17 KAC60003 DAMPER ROD ASSEMBLY 37MM $98.46
18 KCC60058 O-RING MID-VALVE ADJ NEEDLE $1.09
19 KCC60050 NEEDLE - FORK MID-VALVE ADJUSTER $27.68
20 KCC60051 SPRING - FORK ADJUSTER NEEDLE $5.43
21 KCCS0018 FORK - MID VALVE GLIDE RING $9.88
22 HCNJ0601 6MM JAM NUT $1.09
23 BCKG0033 ORING - 2.1MM ID - 1MM - BUNA $2.20
24 KCCS0033 FORK ADJUSTMENT SCREW TOP - SHORT $40.59
25 KCC60049 FORK ADJUSTER PIN $19.90
26 KCMU0013 FORK - CARTRIDGE CAP $32.14
27 KCKG0050 FORK - TOP OUT SPRING $8.77
Not shown KCCJ0002 FORK - TRAVEL LIMITER SPACER $15.44
28 KCKG0019 CARTRIDGE TUBE - JR KG 65 FORKS - ALUM $49.94
29 KCMU0021 O-RING - FORK - BASE VALVE & COMP ADJ $1.09
30 ZCKGB017 O-RING FORK BOTTOM PLUG $2.20
31 KCC60069 FORK - BOTTOM PLUG - ADJUSTABLE COMPRESSION $76.20
32 KCC60048 FORK BOTTOM PLUG ADJUSTMENT SCREW $33.25
33 ZCMUOR03 O-RING 6.07X1.78 SILICONE $1.09
34 KCCS0031 RING CLIP - FORK ADJUSTMENT SCREW BOTTOM $3.87
35 KCCS0007 FORK - GLIDE RING TOP 32MM $14.33
36 KAMU0003 FORK LOWER COMPLETE BRAKE SIDE - HOLLOW AXLE $216.86
TOOL MCMUTL39 TOOL - FORK SEAL SWIPER
