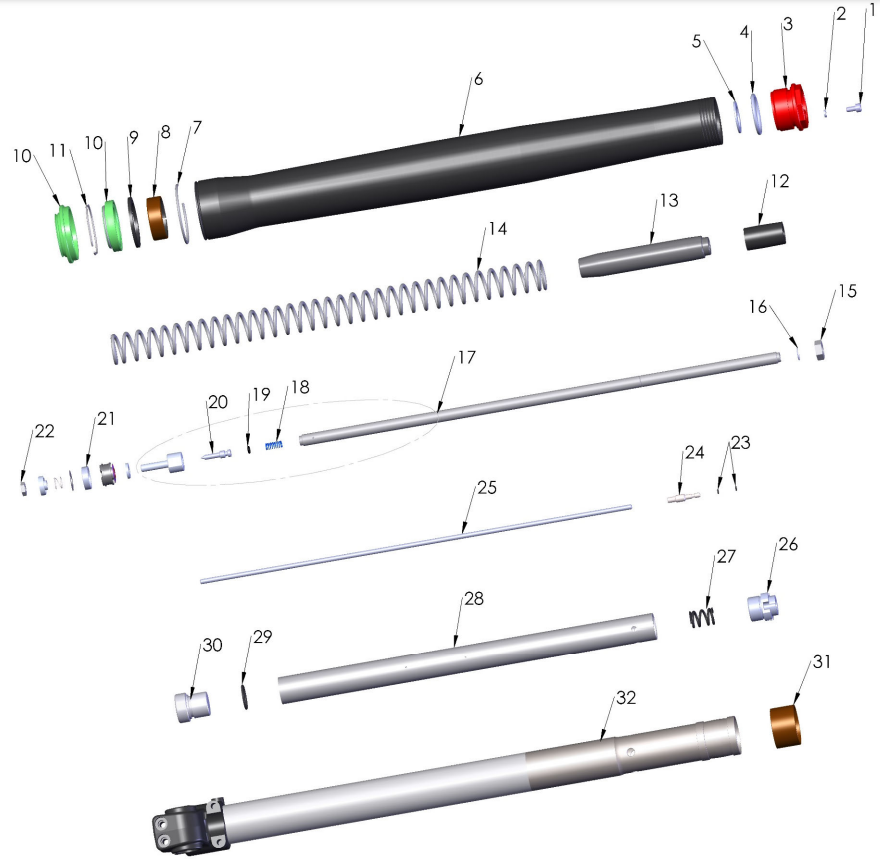

2024 CX50FWE Parts - Forks – Leg Assembly – Non-brake Side

Note: Products marked with an asterisk (*) are currently out of stock and on backorder. They may take additional time to deliver and will not arrive with the rest of your order.

Ref #	Part #	Product	Price	Quantity
1	HCBC0408	M4 X 8 SHCS CLEAR ZINC*	$1.09	Back Order
2	ZCKG0001	GASKET BLEED SCREW FORK	$0.86
3	KCCS0004S	FORK CAP - SMART BOTTOMING 32MM USD*	$87.89	Back Order
4	ZCMUOR18	O-RING - 3MM X 27MM ID	$2.20
5	KCCS0035	FORK - RING CLIP - OUTER WEAR 32MM*	$5.43	Back Order
6	KCCS0006	FORK - GLIDE RING BOTTOM 32MM*	$14.33	Back Order
7	KCCS0032	SPACER - FORK SEAL- 32MM*	$7.65	Back Order
8	KKCS0004	FORK - SEAL & SWIPER KIT - 32MM SKF (1 seal 1 swiper)*	$39.93	Back Order
9	KCCS0002	FORK - SEAL RETAINER RING CLIP - 32MM*	$6.54	Back Order
10	KCC60067	FORK - JOUNCE BUMPER*	$8.32	Back Order
11	KCCS0013	GUIDE - FORK SPRING - 32MM*	$22.12	Back Order
12	KCCS3225	SPRING - FORK 0.25 KG/MM 32MM KING - STD*	$48.88	Back Order
13	KCCS3223	SPRING - FORK 0.23 KG/MM 32MM KING - LIGHT*	$48.88	Back Order
14	KCCS3227	SPRING - FORK 0.27 KG/MM 32MM KING - HEAVY*	$48.88	Back Order
14	HCNJ3824	NUT JAM 3/8-24 CLASS 8*	$3.32	Back Order
14	KCC60068	FORK - RING CLIP - SPRING GUIDE RETAINER*	$4.76	Back Order
15	KAC60003	DAMPER ROD ASSEMBLY 37MM*	$98.46	Back Order
16	KCC60058	O-RING MID-VALVE ADJ NEEDLE*	$1.09	Back Order
17	KCC60050	NEEDLE - FORK MID-VALVE ADJUSTER*	$27.68	Back Order
18	KCC60051	SPRING - FORK ADJUSTER NEEDLE*	$5.43	Back Order
19	KCCS0018	FORK - MID VALVE GLIDE RING*	$9.88	Back Order
20	HCNJ0601	6MM JAM NUT*	$1.09	Back Order
21	BCKG0033	ORING - 2.1MM ID - 1MM - BUNA*	$2.20	Back Order
22	KCCS0033	FORK ADJUSTMENT SCREW TOP - SHORT*	$40.59	Back Order
23	KCC60049	FORK ADJUSTER PIN*	$19.90	Back Order
24	KCMU0013	FORK - CARTRIDGE CAP*	$32.14	Back Order
25	KCKG0050	FORK - TOP OUT SPRING*	$8.77	Back Order
26	KCC60056	FORK CARTRIDGE TUBE - SMART LEG*	$61.07	Back Order
27	KCMU0021	O-RING - FORK - BASE VALVE & COMP ADJ*	$1.09	Back Order
28	KCC60057	FORK - BOTTOM PLUG - SMART LEG*	$32.14	Back Order
29	KCCS0007	FORK - GLIDE RING TOP 32MM*	$14.33	Back Order
30	KAMU0004BLK	FORK LOWER COMPLETE NON-BRAKE SIDE - HOLLOW AXLE - BLACK*	$216.86	Back Order
31	MCMUTL39	TOOL - FORK SEAL SWIPER DRIVER - 32MM*	$61.18	Back Order
32	MCMUTL32	TOOL - FORK CAP WRENCH - 32MM*	$17.67	Back Order
TOOL	MCMUTL04	TOOL - CARTRIDGE TUBE WRENCH*	$49.94	Back Order
