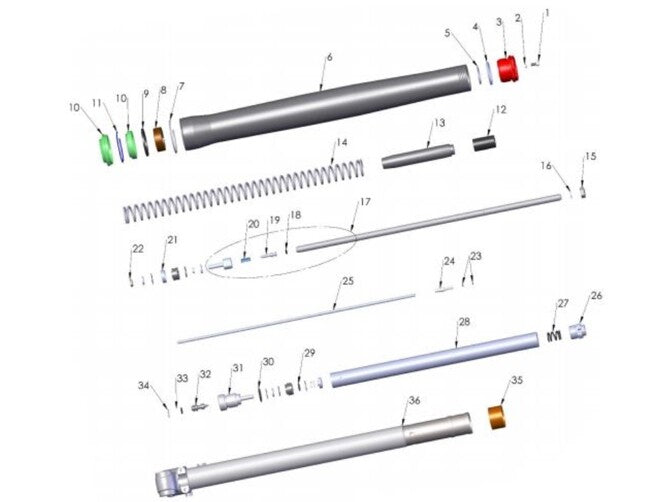

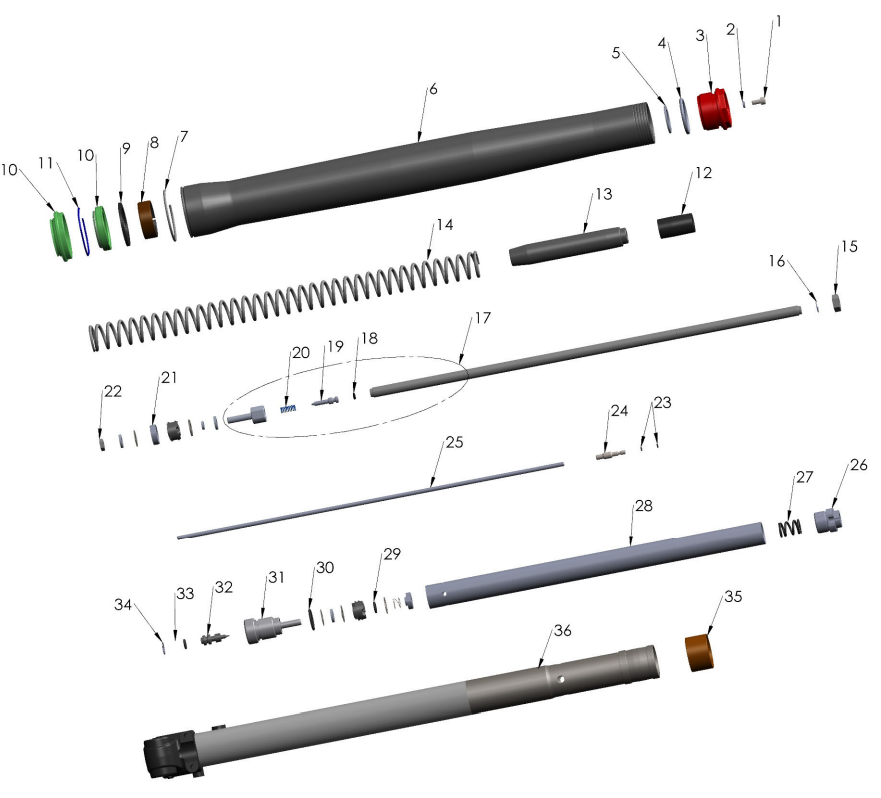

2024 CX50FWE Parts – Forks – Leg Assembly – Brake Side

2024 CX50FWE Parts – Forks – Leg Assembly – Brake Side
Add to Cart
Note: Products marked with an asterisk (*) are currently out of stock and on backorder. They may take additional time to deliver and will not arrive with the rest of your order.
Ref # Part # Image Product Price Quantity
1 HCBC0408 M4 X 8 SHCS CLEAR ZINC* $1.09 Back Order
2 ZCKG0001 GASKET BLEED SCREW FORK $0.86
3 KCCS0004C FORK CAP - CONVENTIONAL REBOUND 32MM USD* $87.89 Back Order

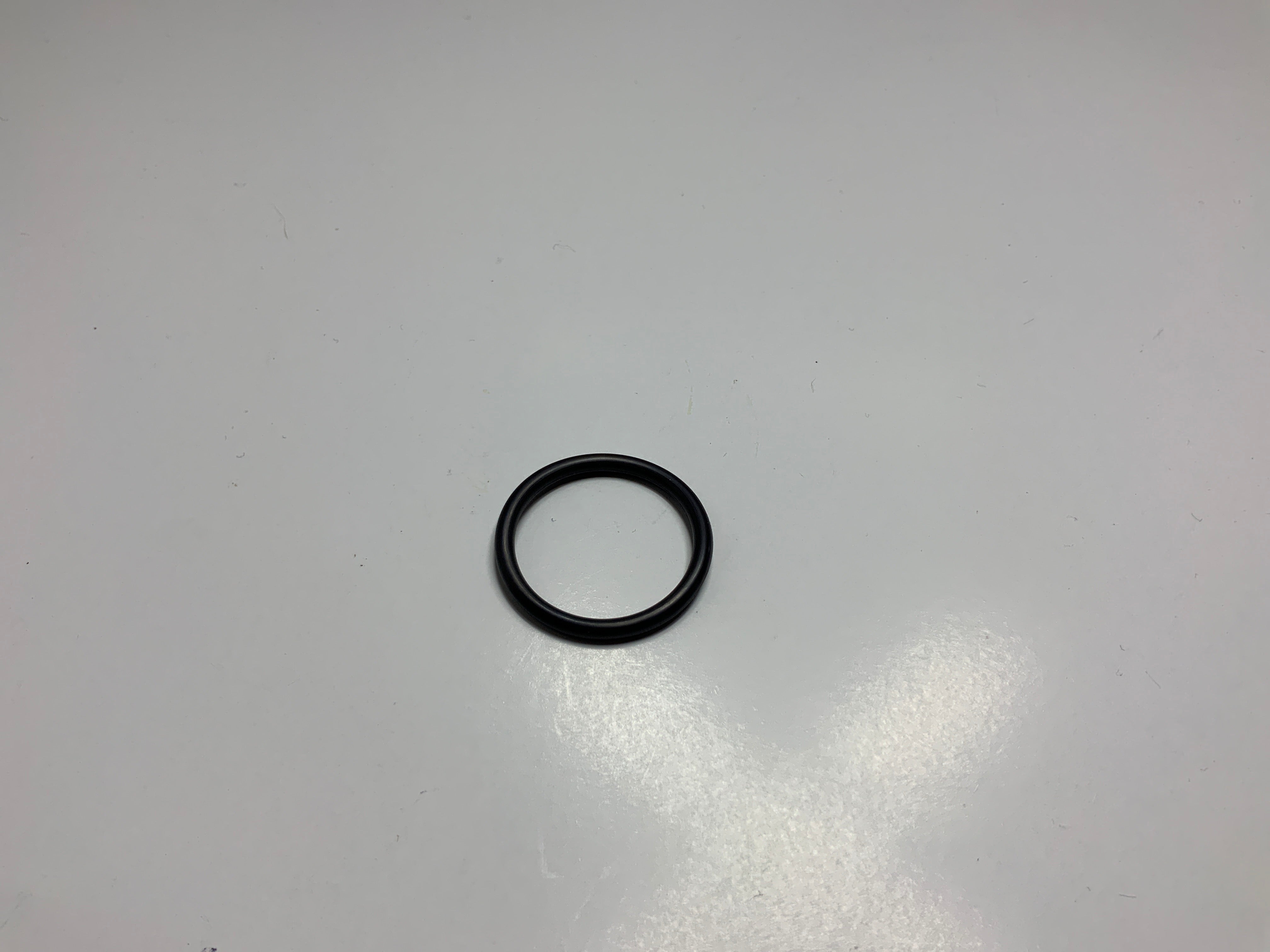

4 ZCMUOR18 O-RING - 3MM X 27MM ID $2.20
5 KCCS0035 FORK - RING CLIP - OUTER WEAR 32MM* $5.43 Back Order

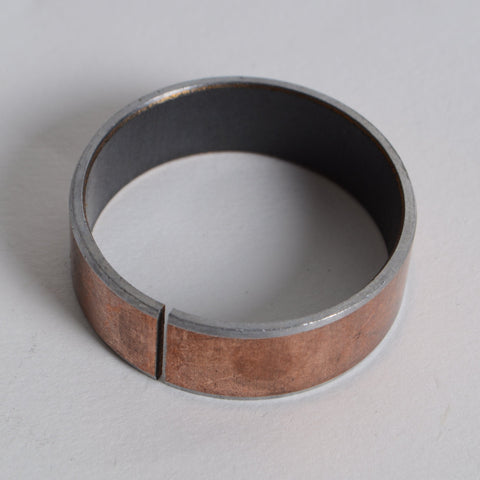

6 KCCS0006 FORK - GLIDE RING BOTTOM 32MM* $14.33 Back Order
7 KCCS0032 SPACER - FORK SEAL- 32MM* $7.65 Back Order

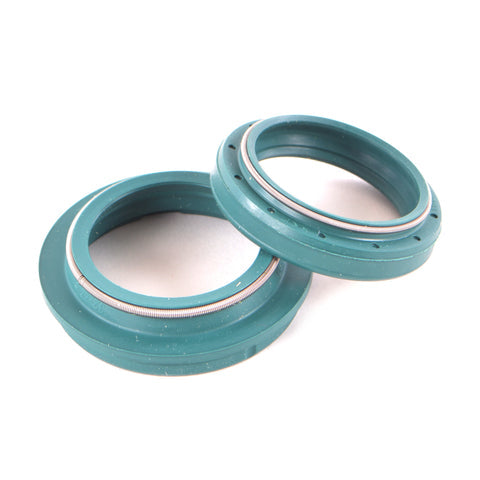

8 KKCS0004 FORK - SEAL & SWIPER KIT - 32MM SKF (1 seal 1 swiper)* $39.93 Back Order
9 KCCS0002 FORK - SEAL RETAINER RING CLIP - 32MM* $6.54 Back Order
10 KCC60067 FORK - JOUNCE BUMPER* $8.32 Back Order
11 KCCS0013 GUIDE - FORK SPRING - 32MM* $22.12 Back Order
12 KCCS3225 SPRING - FORK 0.25 KG/MM 32MM KING - STD* $48.88 Back Order

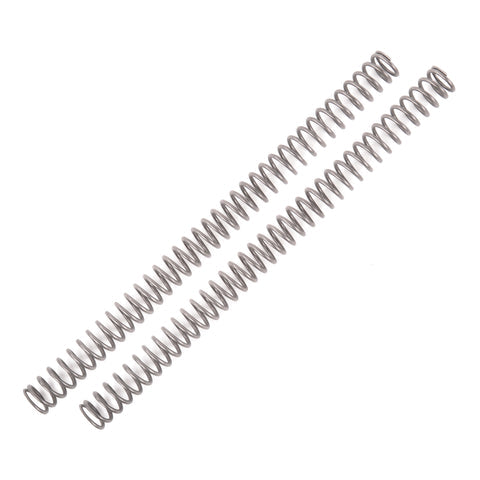

13 KCCS3223 SPRING - FORK 0.23 KG/MM 32MM KING - LIGHT* $48.88 Back Order

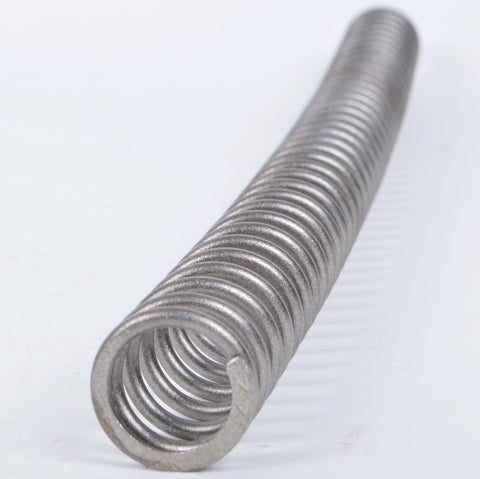

14 KCCS3227 SPRING - FORK 0.27 KG/MM 32MM KING - HEAVY* $48.88 Back Order
14 HCNJ3824 NUT JAM 3/8-24 CLASS 8* $3.32 Back Order
14 KCC60068 FORK - RING CLIP - SPRING GUIDE RETAINER* $4.76 Back Order
15 KAC60003 DAMPER ROD ASSEMBLY 37MM* $98.46 Back Order
16 KCC60058 O-RING MID-VALVE ADJ NEEDLE* $1.09 Back Order

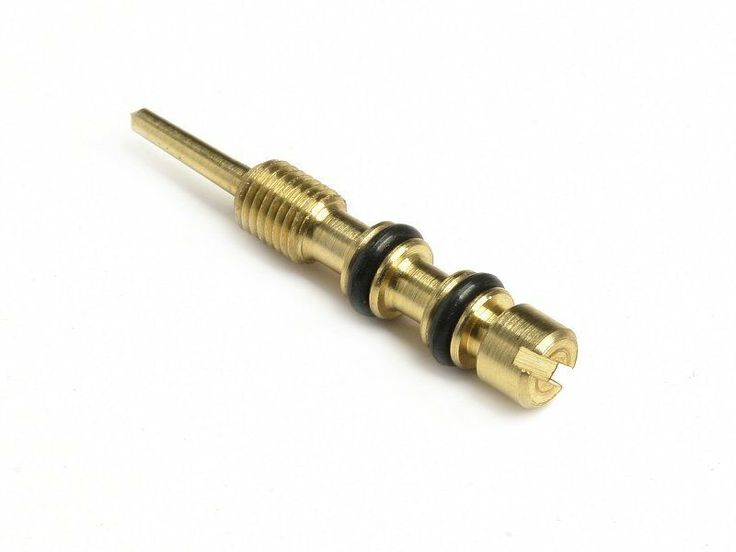

17 KCC60050 NEEDLE - FORK MID-VALVE ADJUSTER* $27.68 Back Order
18 KCC60051 SPRING - FORK ADJUSTER NEEDLE* $5.43 Back Order
19 KCCS0018 FORK - MID VALVE GLIDE RING* $9.88 Back Order

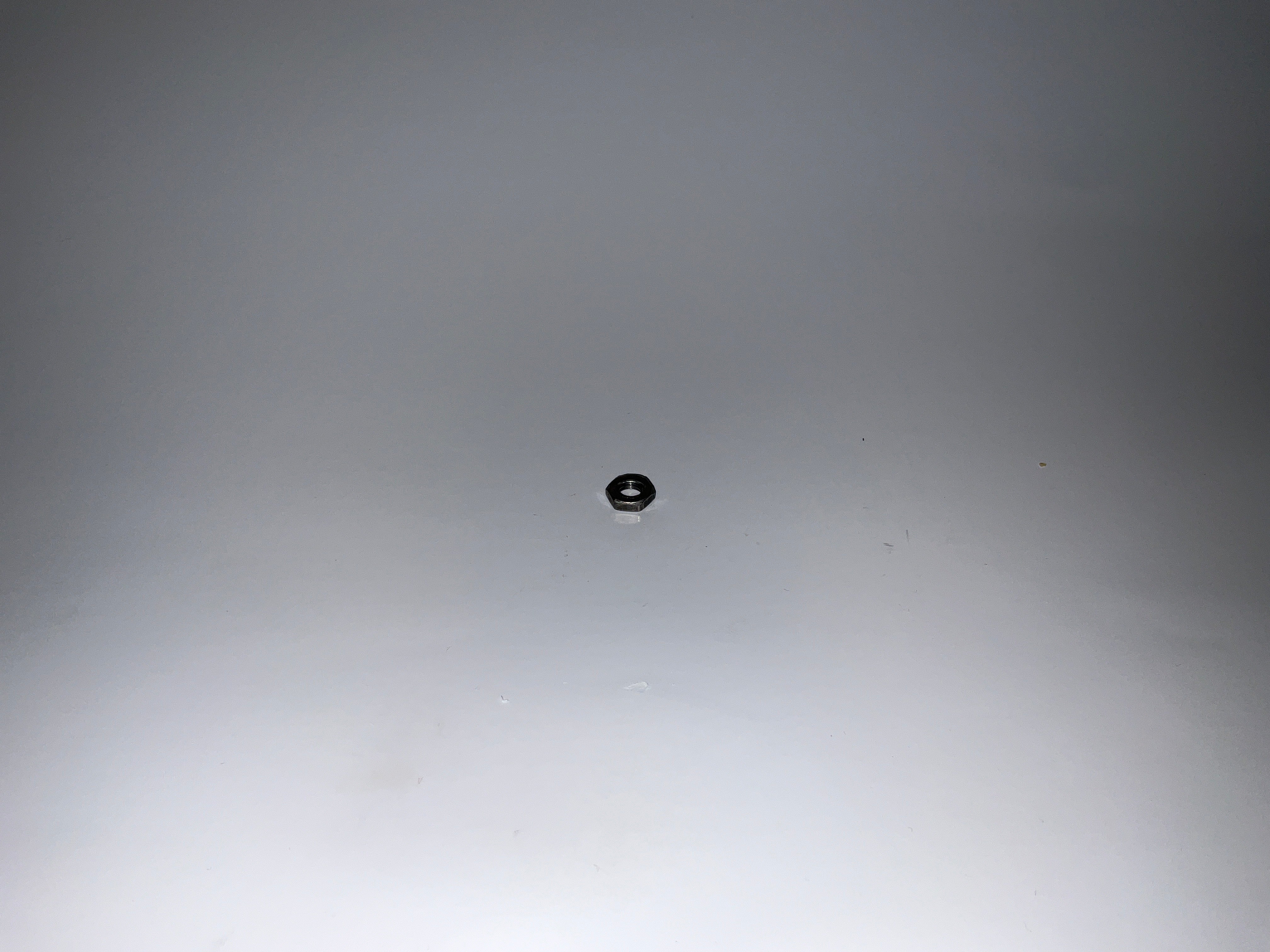

20 HCNJ0601 6MM JAM NUT* $1.09 Back Order
21 BCKG0033 ORING - 2.1MM ID - 1MM - BUNA* $2.20 Back Order
22 KCCS0033 FORK ADJUSTMENT SCREW TOP - SHORT* $40.59 Back Order

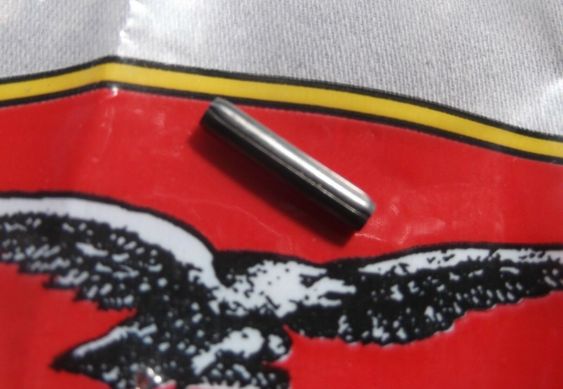

23 KCC60049 FORK ADJUSTER PIN* $19.90 Back Order
24 KCMU0013 FORK - CARTRIDGE CAP* $32.14 Back Order
25 KCKG0050 FORK - TOP OUT SPRING* $8.77 Back Order
26 KCKG0019 CARTRIDGE TUBE - JR KG 65 FORKS - ALUM* $49.94 Back Order
27 KCMU0021 O-RING - FORK - BASE VALVE & COMP ADJ* $1.09 Back Order
28 ZCKGB017 O-RING FORK BOTTOM PLUG $2.20
29 KCC60069 FORK - BOTTOM PLUG - ADJUSTABLE COMPRESSION* $76.20 Back Order
30 KCC60048 FORK BOTTOM PLUG ADJUSTMENT SCREW* $33.25 Back Order
31 ZCMUOR03 O-RING 6.07X1.78 SILICONE $1.09
32 KCCS0031 RING CLIP - FORK ADJUSTMENT SCREW BOTTOM* $3.87 Back Order

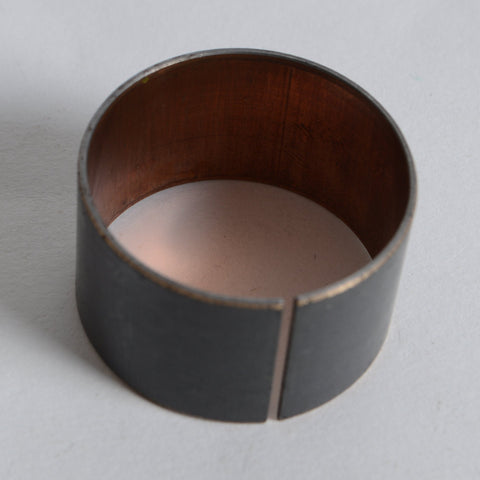

33 KCCS0007 FORK - GLIDE RING TOP 32MM* $14.33 Back Order
34 KAMU0003BLK FORK LOWER COMPLETE BRAKE SIDE - BLACK - HOLLOW AXLE* $216.86 Back Order

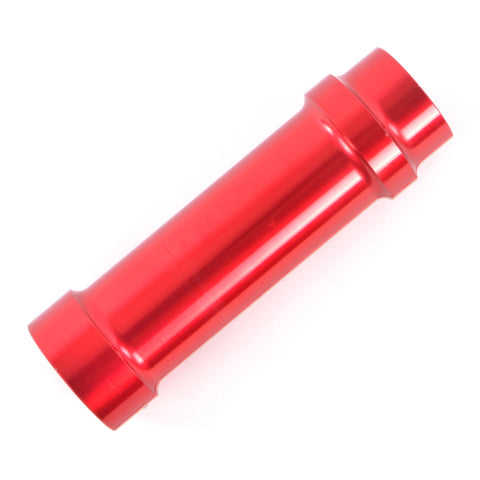

35 MCMUTL39 TOOL - FORK SEAL SWIPER DRIVER - 32MM* $61.18 Back Order

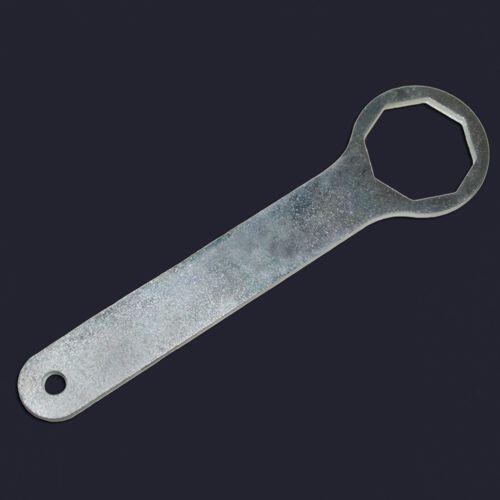

36 MCMUTL32 TOOL - FORK CAP WRENCH - 32MM* $17.67 Back Order

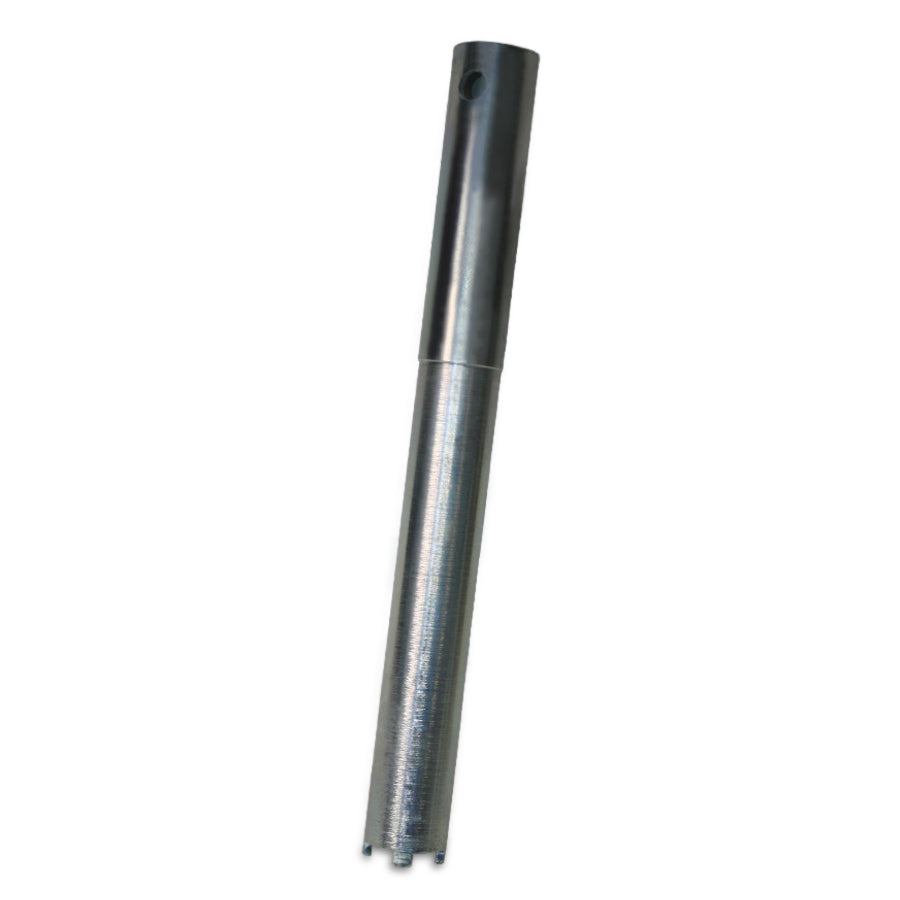

TOOL MCMUTL04 TOOL - CARTRIDGE TUBE WRENCH* $49.94 Back Order
