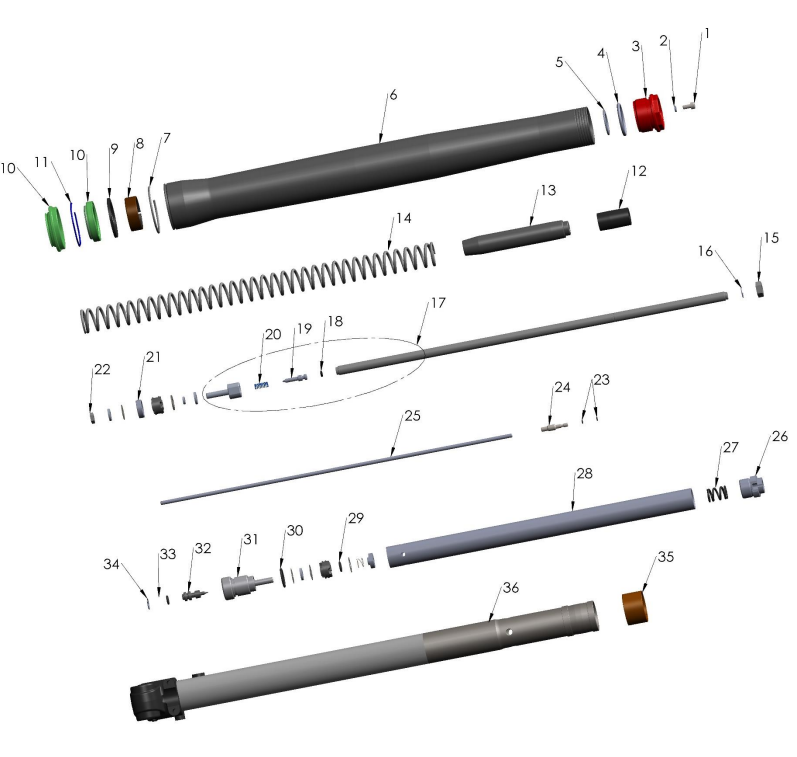

2022 CX50SRx FWE Parts – Forks – Leg Assembly – Brake Side
2022 CX50SRx FWE Parts – Forks – Leg Assembly – Brake Side
Item |
Refrence # |
Title |
price |
Quantity |
| 1 | HCBC0408 | 4 x 8 shcs clear zinc | $1.08 |
Out of stock |
| 2 | ZCKG0001 | Gasket, bleed screw fork | $0.88 |
Out of stock |
| 3 | KCCS0004C | Fork cap - conventional 32mm usd | $87.88 |
Out of stock |
| 4 | ZCMUOR18 | O-ring – 3mm x 27mm id | $2.18 |
Out of stock |
| 5 | KCCS0036 | Spring wear plate 32mm | $6.58 |
Out of stock |
| 6 | KCCS0005 | Outer tube 32mm | $220.88 |
Out of stock |
| 7 | KCCS0035 | Ring clip fork outer wear ring 32mm | $5.48 |
Out of stock |
| 8 | KCCS0006 | Fork glide ring bottom 32mm | $14.38 |
Out of stock |
| 9 | KCCS0032 | Fork seal spacer 32mm | $7.68 |
Out of stock |
| 10 | KKCS0004 | Fork seal and swiper kit 32mm | $87.88 |
Out of stock |
| 11 | KCCS0002 | Ring clip - fork seal retainer - 32mm | $13.38 |
Out of stock |
| 12 | KCC60067 | Fork jounce bumper | $8.38 |
Out of stock |
| 13 | KCCS0013 | Fork spring guide 32mm | $22.18 |
Out of stock |
| 14 | KCCS3225 | Standard spring - fork 0.25 kg/mm 32mm | $36.58 |
Out of stock |
| 15 | KCCS3223 | Light spring - fork 0.23 kg/mm 32mm 14 | $36.58 |
Out of stock |
| 16 | KCCS3227 | Heavy spring - fork 0.257kg/mm 32mm 14 | $36.58 |
Out of stock |
| 17 | HCNJ3824 | Nut jam 3/8-24 class 8 15 | $3.38 |
Out of stock |
| 18 | KCC60068 | Ring clip - fork spring guide retainer 16 | $4.78 |
Out of stock |
| 19 | KAC60003 | Damper rod assembly 17 | $98.48 |
Out of stock |
| 20 | KCC60058 | O-ring mid-valve adj needle 18 | $1.08 |
Out of stock |
| 21 | KCC60050 | Fork mid-valve adjuster needle 19 | $27.68 |
Out of stock |
| 22 | KCC60051 | Spring - fork adjuster needle 20 | $5.48 |
Out of stock |
| 23 | KCCS0018 | Glide Ring - Fork Piston - Mid Valve 21 | $9.88 |
Out of stock |
| 24 | HCNJ0601 | 6mm jam nut 22 | $0.68 |
Out of stock |
| 25 | BCKG0033 | O-ring – 2mm Id 23 | $2.18 |
Out of stock |
| 26 | KCCS0033 | Adjuster screw top 32mm 24 | $40.58 |
Out of stock |
| 27 | KCC60049 | Adjuster pin 25 | $19.88 |
Out of stock |
| 28 | KCMU0013 | Cartridge cap 26 | $32.18 |
Out of stock |
| 29 | KCKG0050 | Top out spring 27 | $8.78 |
Out of stock |
| 30 | KCKG0019 | Fork - Cartridge Tube 28 | $49.98 |
Out of stock |
| 31 | KCMU0021 | O-ring - fork - base valve 29 | $1.08 |
Out of stock |
| 32 | ZCKGB017 | O-ring - fork bottom plug 30 | $2.18 |
Out of stock |
| 33 | KCC60069 | Fork bottom plug – adjustable 31 | $76.18 |
Out of stock |
| 34 | KCC60048 | Adjustmet screw – fork bottom plug 32 | $33.28 |
Out of stock |
| 35 | ZCMUOR03 | O-ring – adjustment screw 33 | $1.08 |
Out of stock |
| 36 | KCCS0031 | Ring clip – fork adjustment screw 34 | $3.88 |
Out of stock |
| 37 | KCCS0007 | Fork glide ring 35 | $14.38 |
Out of stock |
| 38 | KAMU0003 | For lower – complete – brake side 36 | $216.88 |
Out of stock |
| 39 | MCMUTL39 | Tool – fork seal / swiper driver – 32mm TOOL | $61.18 |
Out of stock |
| 40 | MCMUTL32 | Tool – fork cap wrench – 32mm TOOL | $17.68 |
Out of stock |
| 41 | MCMUTL04 | Tool – cartridge tube wrench TOOL | $49.98 |
Out of stock |
