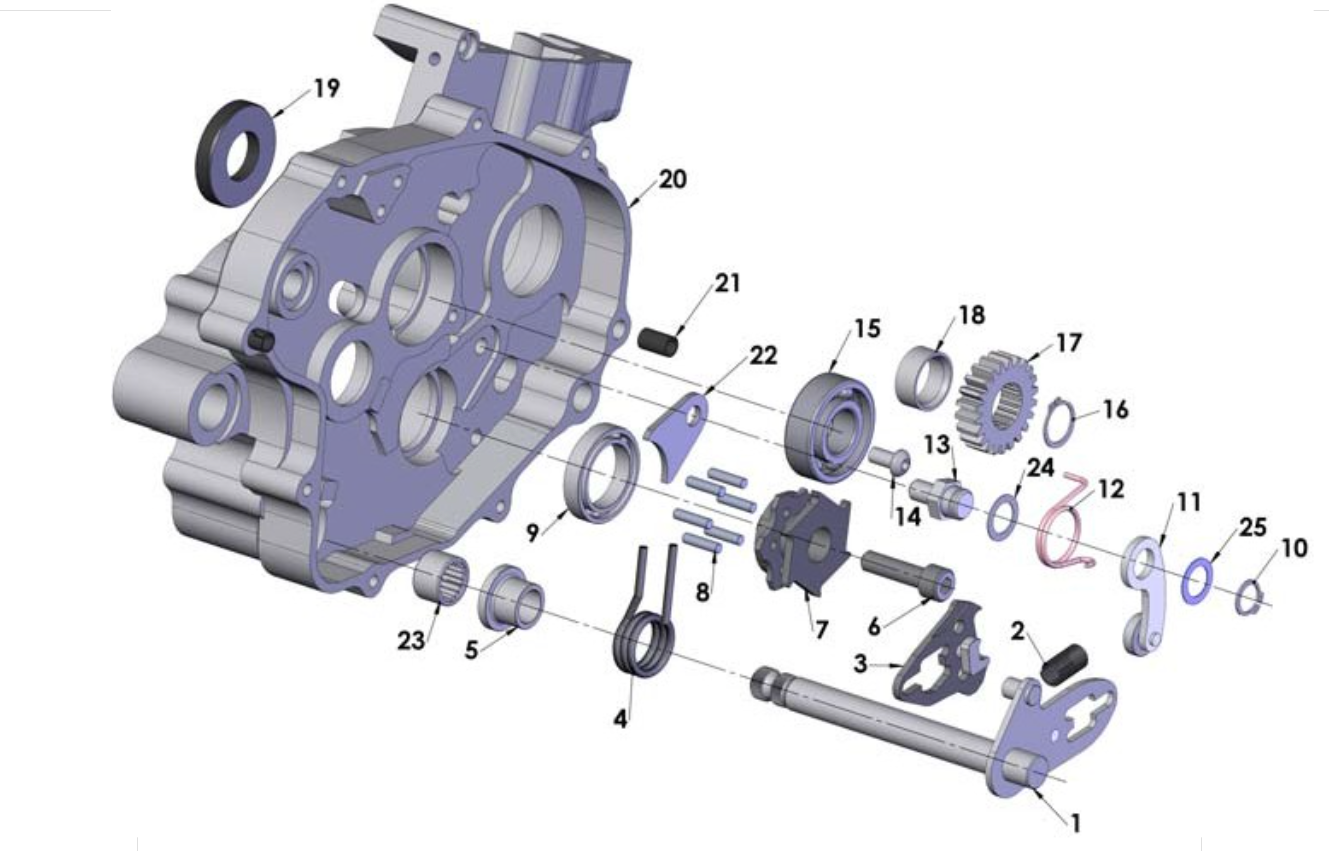

2012 Cobra CX65 Parts – Engine – Shift Mechanism

Ref #	Part #	Product	Price	Quantity
1	EAC60011	R/B SEE ASSY NOTES - SHIFTER SHAFT W/ PIVOT PLATE	$98.24

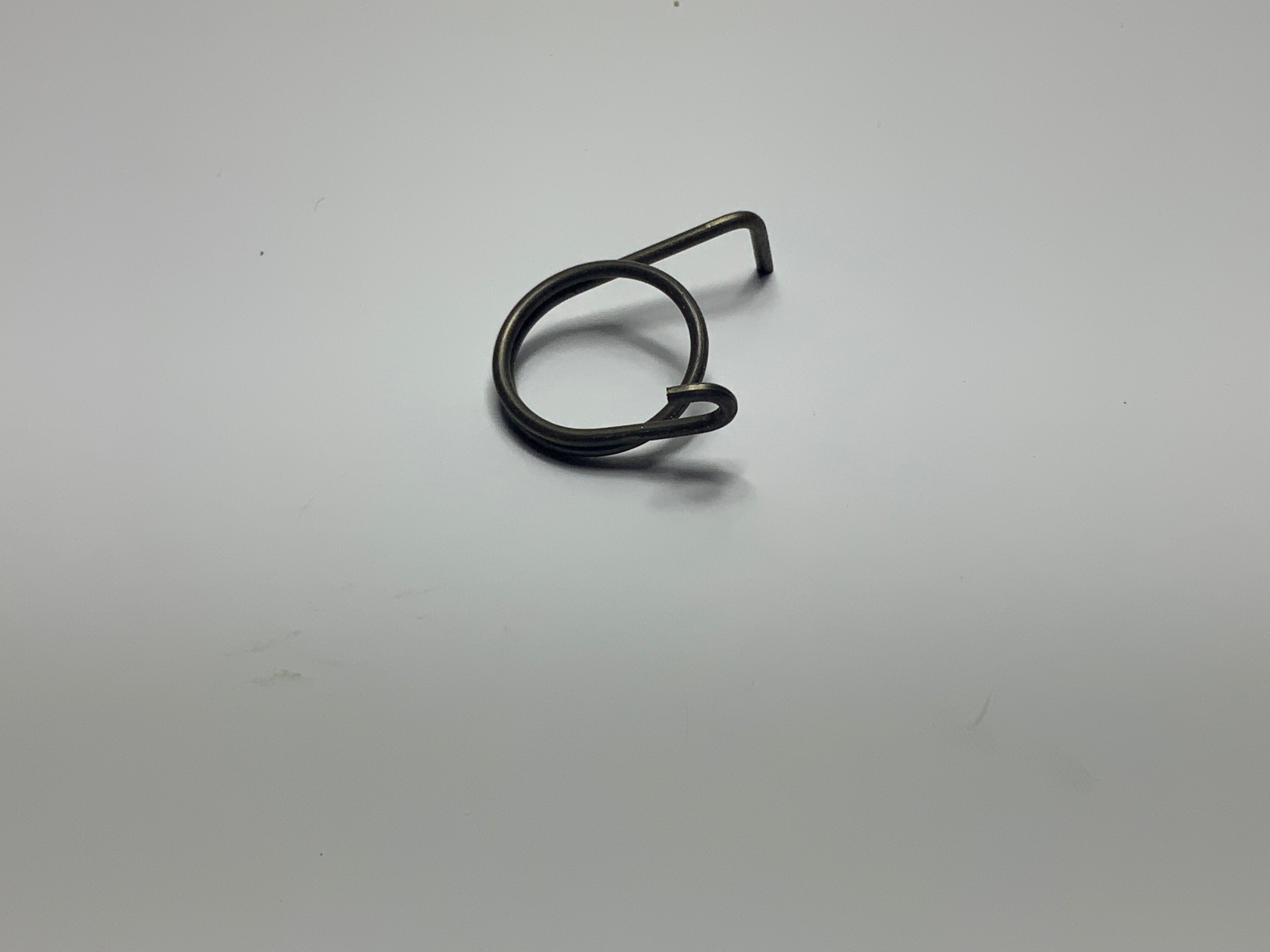

2	ECDC0055	SHIFTER SPRING	$13.88
3	EAC60012	SHIFTER SLIDE PLATE WELDMENT/MACHINE	$61.07
4	ECDC0061	BEARING - WRISTPIN 65CC	$14.11
5	ECC60146	SPACER SHIFT SHAFT SPRING CENTERING	$6.09
6	HCBC0825	M8 X 25 SHCS ZINC	$1.09
7	ECC60130	CASSETTE SHIFTING (BUZZ SAW 26)	$61.73

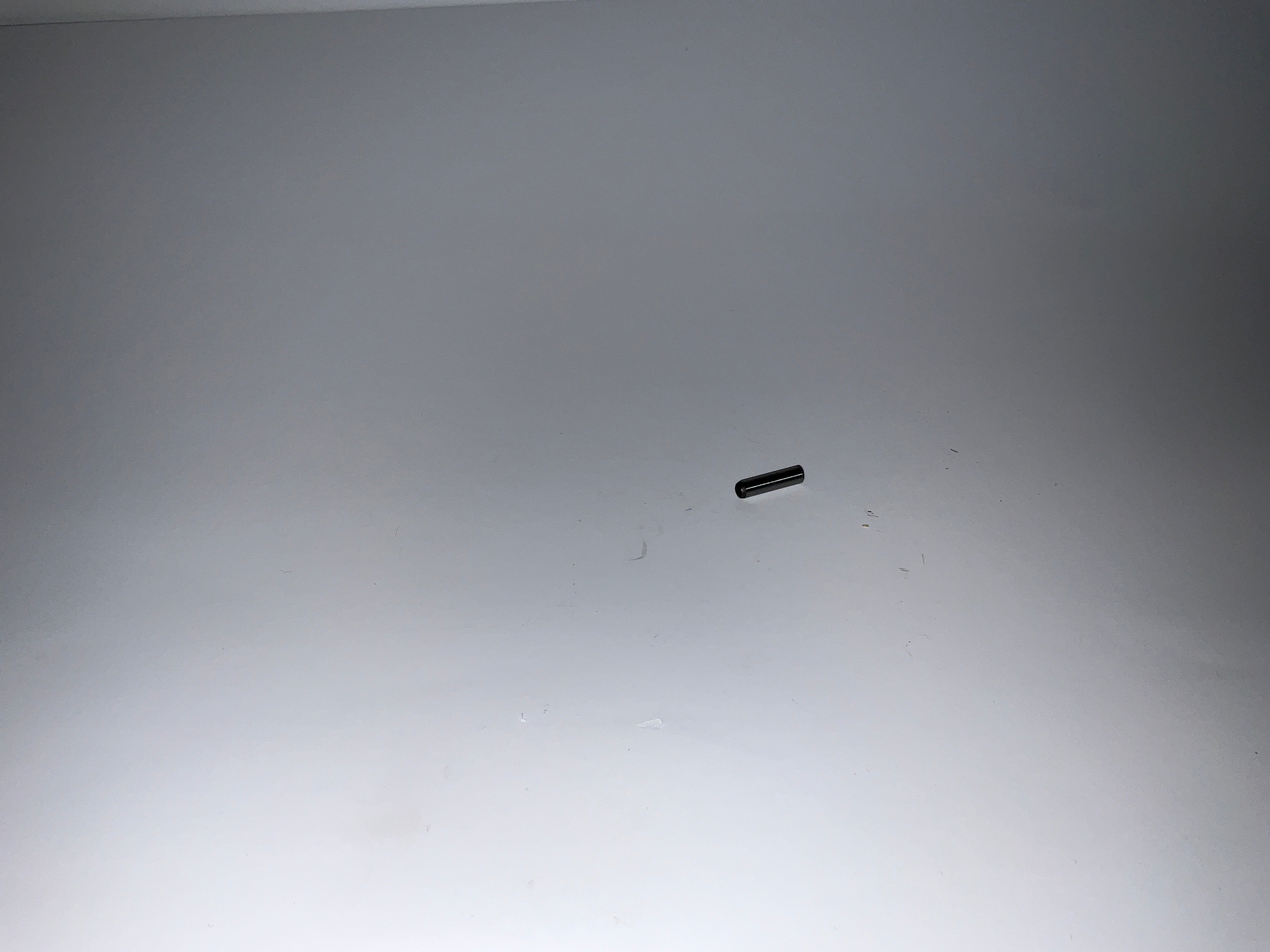

8	ECDC0051	DOWEL PIN 4X16.0	$2.20
9	ECDC0022	BEARING SHIFT DRUM	$22.12

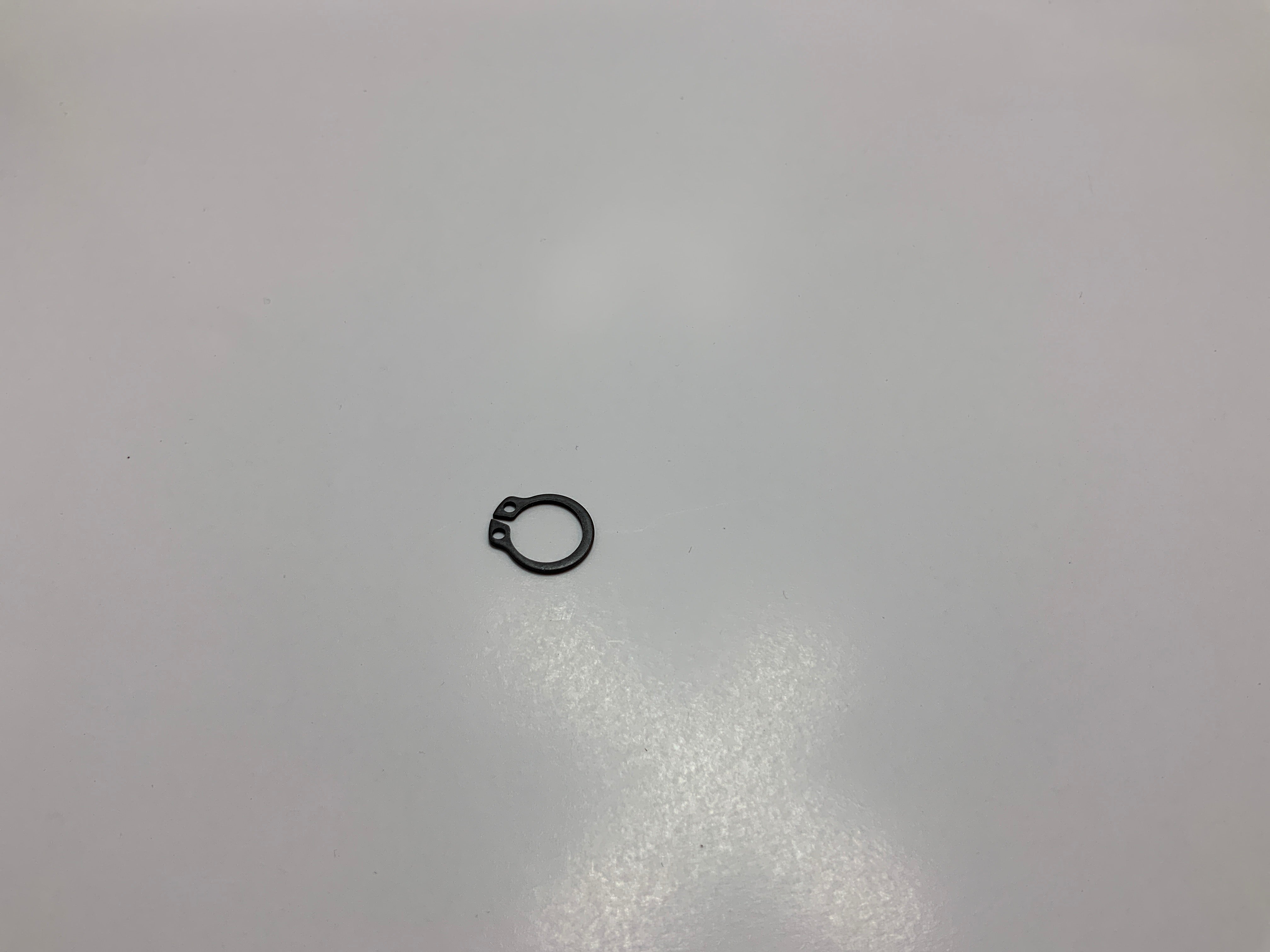

10	ECDC0035	SNAP RING EXT.12MM-GEAR RET.	$2.20
11	ECMU0545	ASSY - SHIFT FOLLOWER ARM AND ROLLER	$27.68
12	ECMU0546	SPRING FOLLOWER ARM	$9.43
13	ECC60096	PIVOT - FOLLOWER ARM	$21.01
14	HCBB1612	M6 X 12 BUTTON HEAD BLACK OXIDE	$1.09
15	ECMU0016	BEARING - 50CC CRANKSHAFT & 65CC TRANS	$22.12
16	ECDC0036	SNAP RING EXT.16MM-SPRING RET.	$2.20
17	ECDC0073	CRANK DRIVE GEAR	$32.14
18	ECDC0112	SPACER CRANKSHAFT DRIVE GEAR	$10.99
19	ECDC0024	SEAL CRANKSHAFT	$10.33
20	EKC62012	ENGINE CASE SET W/B&S CX65	$588.54	Back Order
21	ECDC0031	DOWEL,HOLLOW,CENTERING 6X13	$3.20
22	ECC60095	R/B ECC60199 - RETAINER PLATE FOR SHIFT DRUM BEARING	$9.43

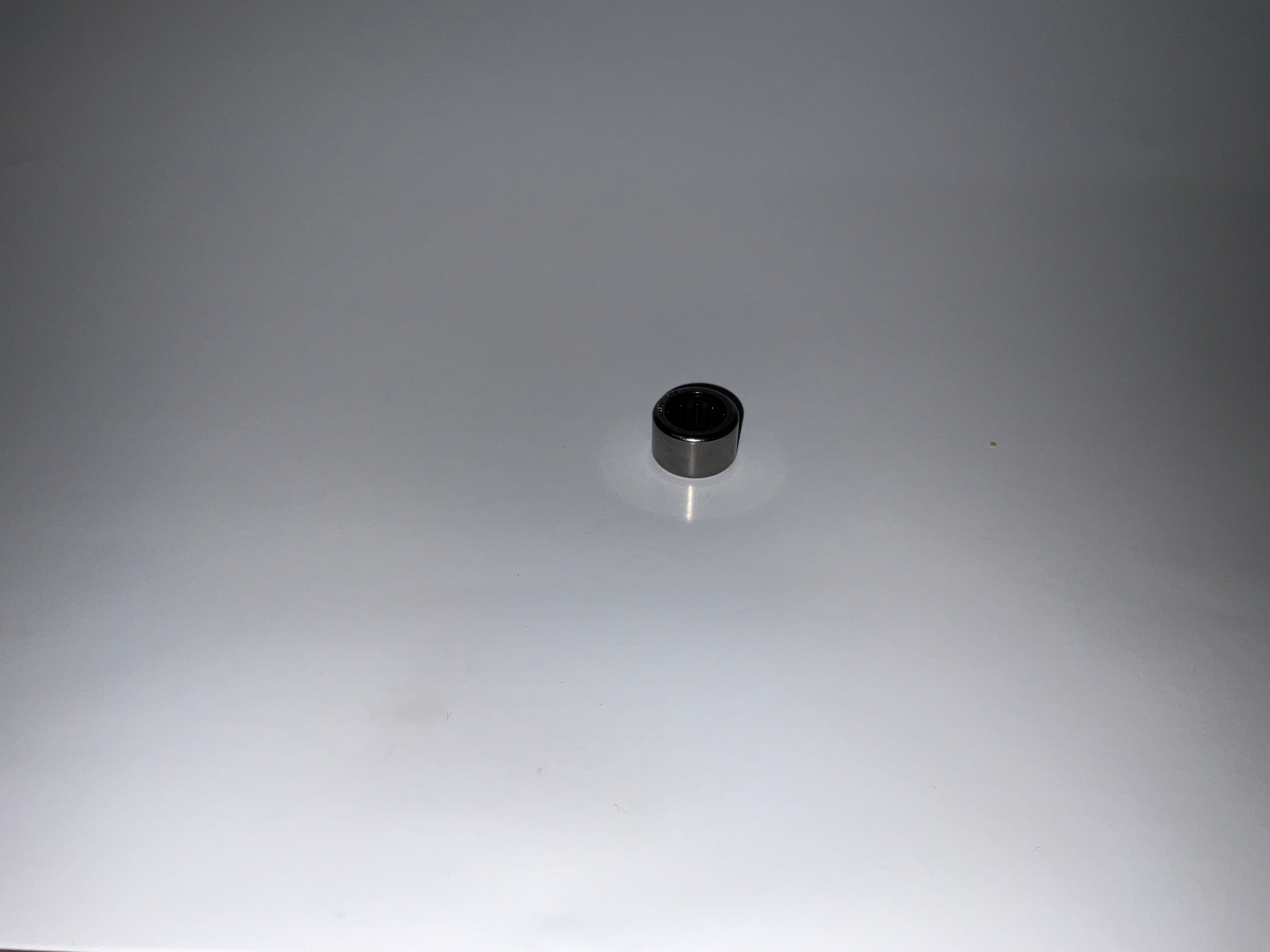

23	ECMU0020	BEARING TRANS. PRECISION NEEDLE	$16.56

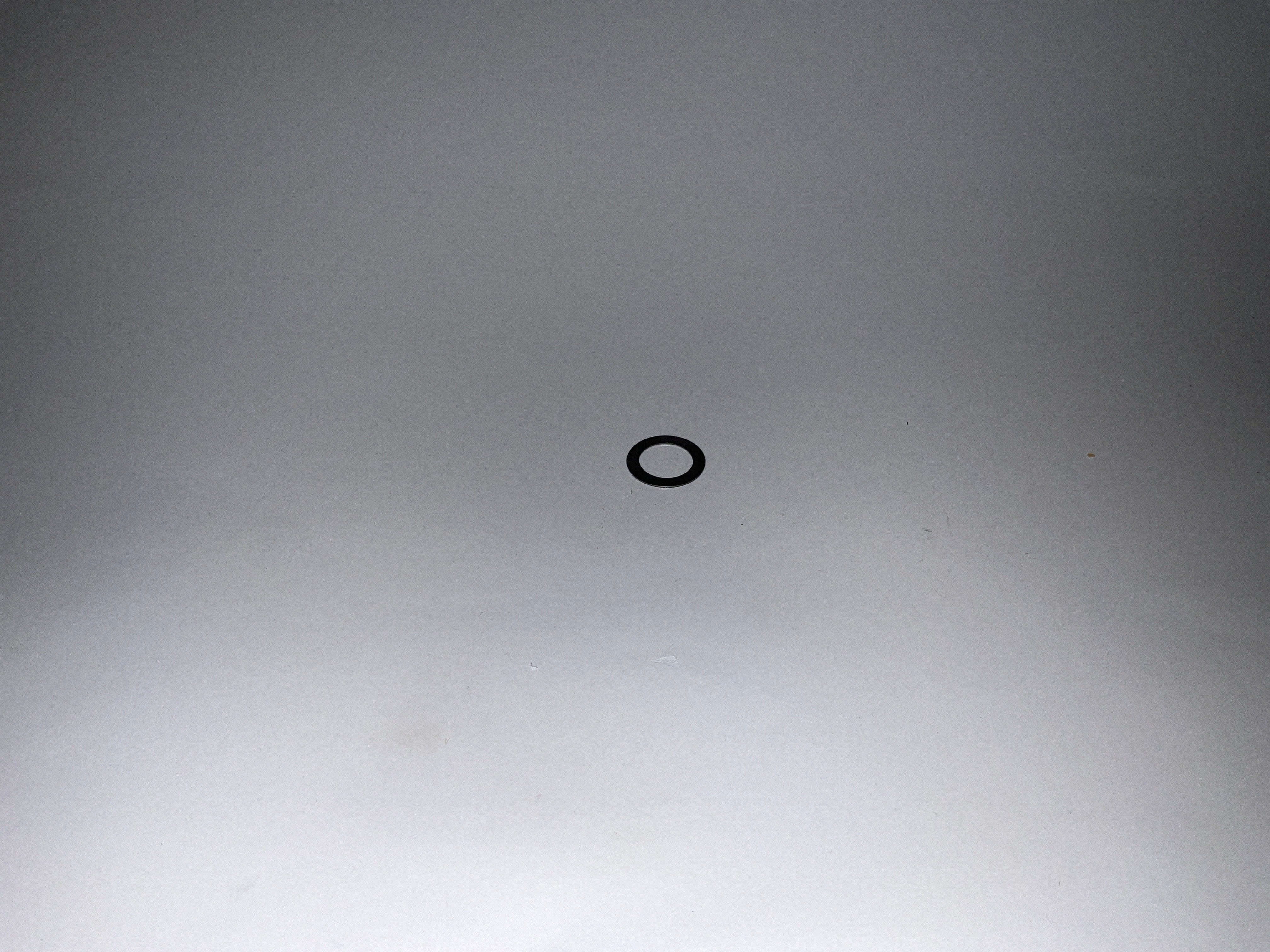

24	ECC60119	SHIM WASHER 18 x 0.5 x 12	$2.20
25	ECC60152	SHIM WASHER 18 x 0.2 x 12	$2.20
25	ECC60153	SHIM WASHER 18 x 0.3 x 12	$2.20
