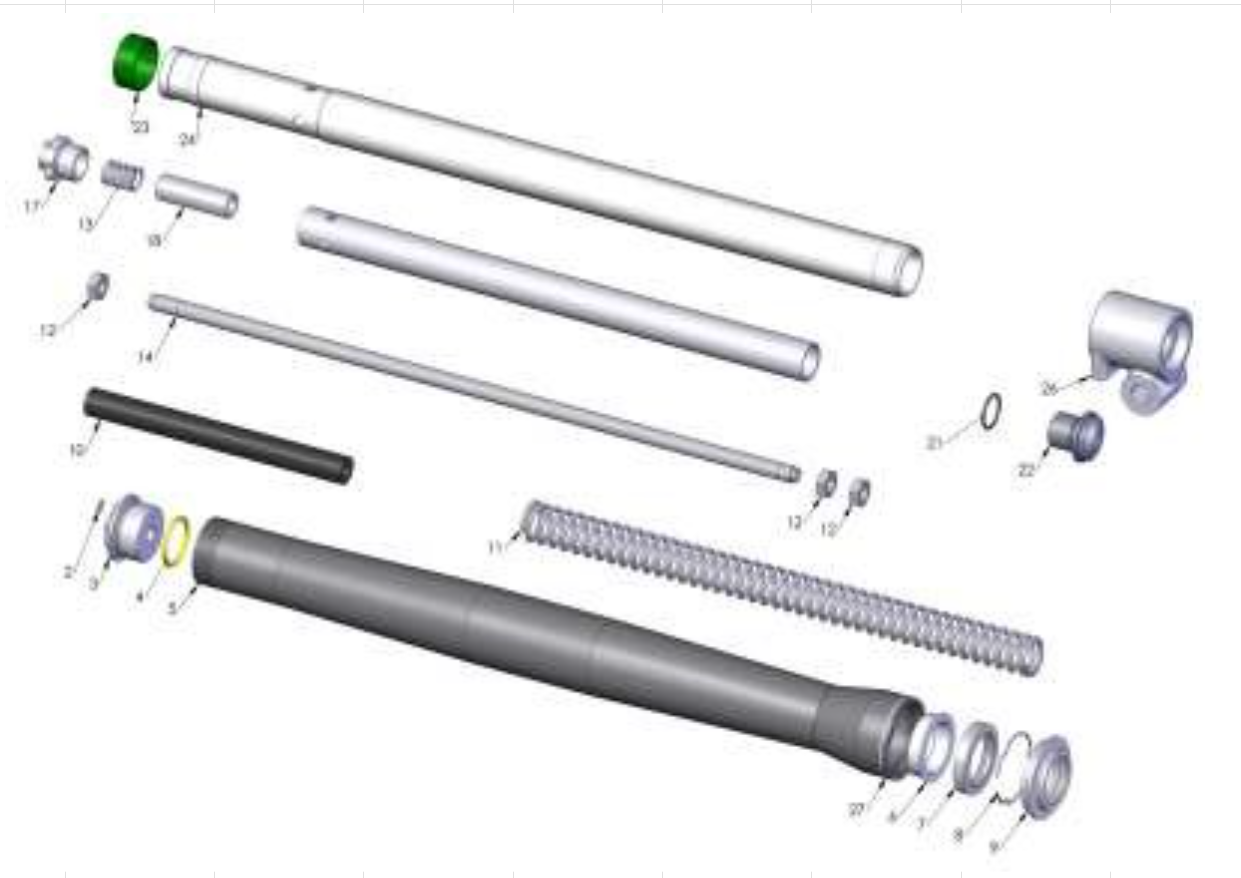

2013 Cobra 50JR Parts – Forks – Leg Assembly – Non-Brake Side

Ref #	Part #	Product	Price
1	HCBC0408	M4 X 8 SHCS CLEAR ZINC	$1.09
2	ZCKG0001	GASKET BLEED SCREW FORK	$2.88
3	KCKG0047	FORK CAP 06 KING	$38.81
4	ZCMUOR08	O-RING GASKET FORKCAP & CYL. HD	$2.20
5	KCKG0121	FORK - OUTER TUBE 30MM	$210.18
6	KCKG0051	R/B KCKG0051L FORK - BUSHING 30MM	$16.56
7	KCMU0007	FORK - SEAL - 30MM	$13.88
8	KCKG0052	FORK - WIRE RETAINER 06	$5.43
9	KCKG0008	FORK - SWIPER 30MM	$16.56
10	KCKG0048	HOSE FORK BOTTOMING 06 KING	$10.55
11	KCCJ0021	FORK SPRING 2011 JR .21 KG/MM	$36.59
11	KCCJ0018	FORK SPRING 2011 JR .18 KG/MM	$36.59
11	KCCJ0025	FORK SPRING 2011 JR .25 KG/MM	$36.59
12	HCNJ3824	NUT JAM 3/8-24 CLASS 8	$3.32
13	KCKG0050	FORK - TOP OUT SPRING	$8.77
14	KCKG0017	FORK - DAMPER TUBE 06 AND NEWER	$42.15
17	KCCS0001	R/B KCMU0013 - FORK - CARTRIDGE CAP	$28.80
18	KCCJ0002	FORK - TRAVEL LIMITER SPACER	$15.44
19	KCKG0019	CARTRIDGE TUBE - JR KG 65 FORKS - ALUM	$49.94
21	ZCKGB017	O-RING FORK BOTTOM PLUG	$2.20
22	KCCS0024	FORK - BOTTOM PLUG PLAIN	$41.04
23	KCKG0049L	R/B KCKG0049LM - FORK - GLIDE RING - 30MM LOOSE	$14.33
24&26	KAKG0145	FORK LOWER COMPLETE, NONBRAKE	$105.58
27	KCMU0012	RING CLIP - FORK OUTER WEAR KING	$5.43
