2012 Cobra 50 Big Wheel Parts – Bars and Controls
Add to Cart
Add to Cart

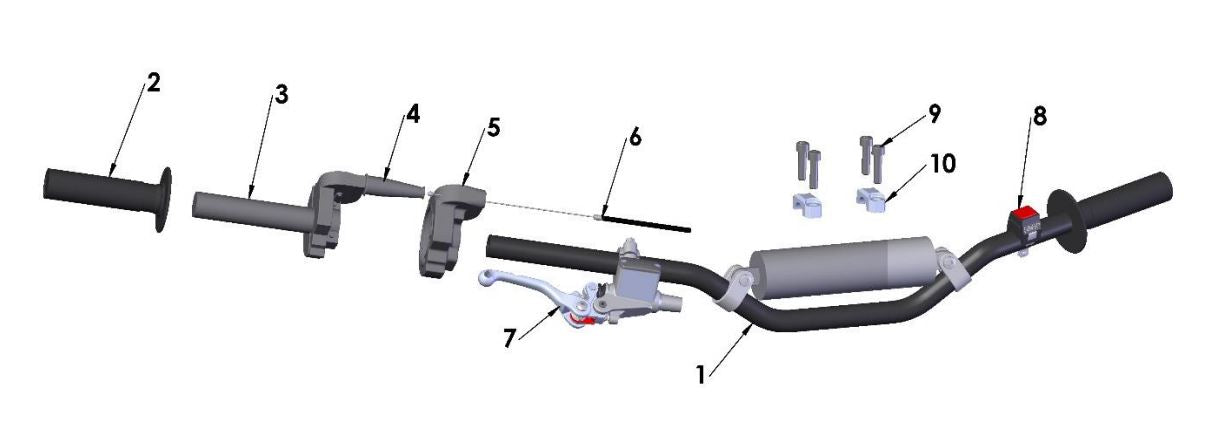

| Ref # | Part # | Image | Product | Price | Quantity |
|---|---|---|---|---|---|
| 1 | FAMU0011 | |
HANDLEBARS - COBRA BEND 7/8 | $73.31 | |
| MCMU0001 | |
R/B TCMU0062 - CROSS BAR PAD - HANDLE BAR PAD | $14.33 | ||
| 2 | TCMU0008 | |
GRIPS - SCOTT WAFFLE SET OF 2 | $13.33 | |
| 3 | FCMU0066 | |
R/B FCMU0043 - THROTTLE ASSEMBLY - STD | $33.25 | |
| NOT SHOWN | FCPW0004 |  |
THROTTLE HOUSING INLET BOOT | $7.77 | |
| 4 | FCMU0021 |  |

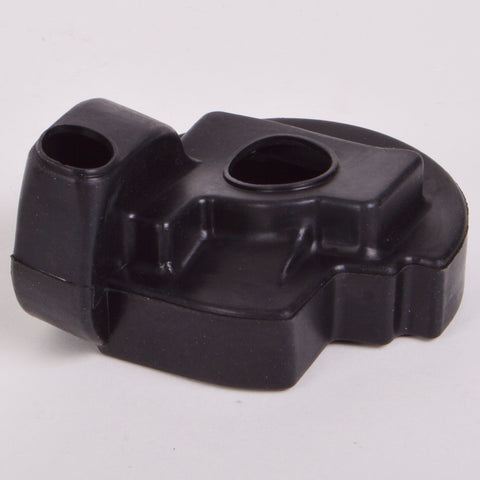

THROTTLE HOUSING COVER | $17.67 | |
| 5 | FCMU0019 |  |
CABLE - THROTTLE - MEDIUM | $14.78 | |
| 6 | BAKG0003 | |
BRAKE ASSY-FRONT DISC-FORMULA | $265.82 | |
| NOT SHOWN | BCKG0023 | |
BRAKE - FRONT LEVER KIT - FORMULA | $47.72 | |
| NOT SHOWN | BCKG0024 | |
BRAKE - MASTER CYL W/LEVER - FORMULA | $143.42 | |
| NOT SHOWN | BAKG0004 | |
BRAKE - HOSE FRONT - MAGURA JULIE | $83.32 | |
| 7 | FCMU0033 |  |
KILL SWITCH | $22.24 | |
| 8 | HCBC0806 |  |
M8 X 30 SHCS ZINC | $1.09 | |
| 9 | HCBC1001 |  |
10 X 45 SHCS ZINC WHEN OUT, USE HCBC1040 | $2.98 | |
| 10 | TKMU0404 |  |

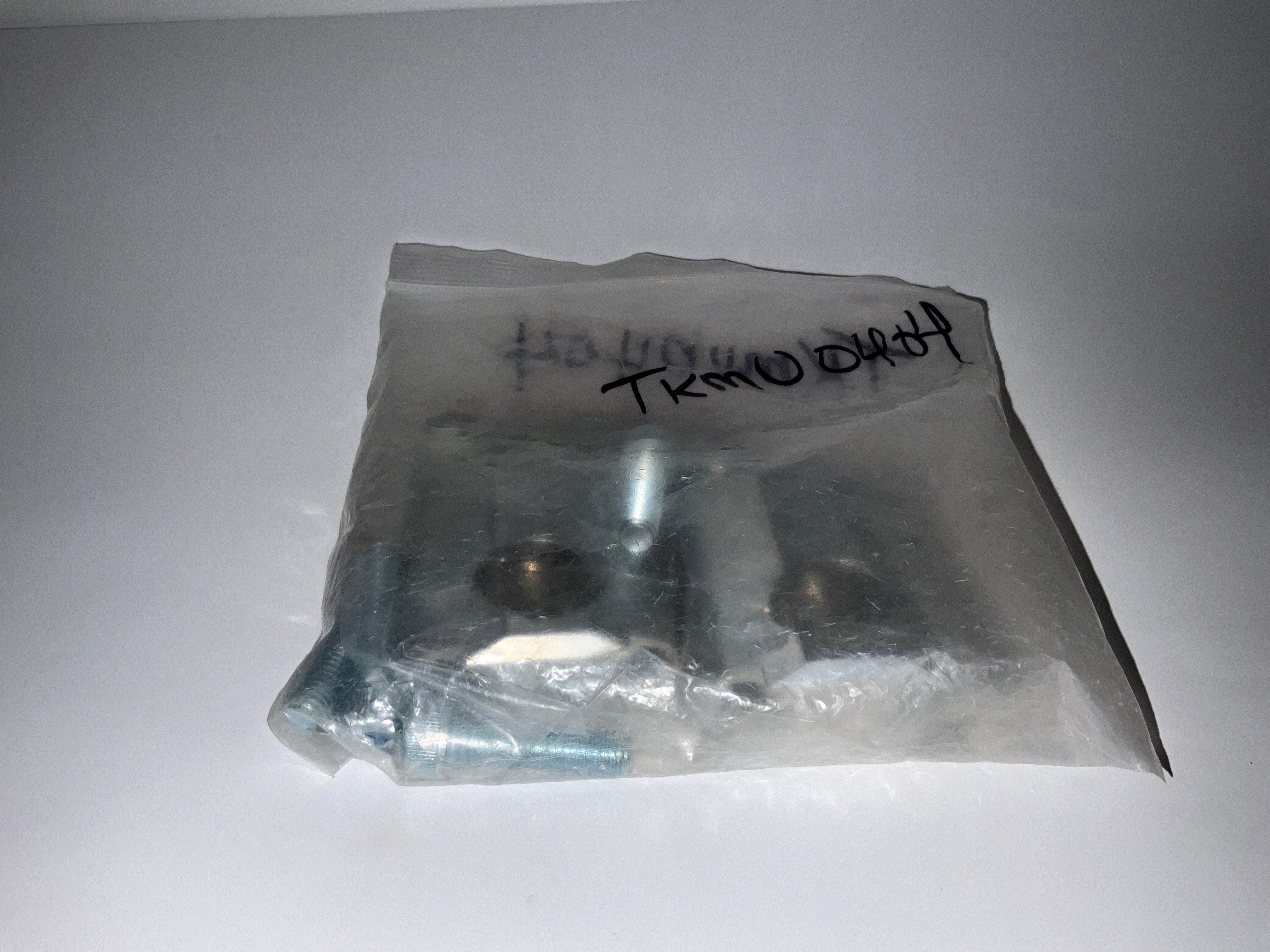

HANDLE BAR RISER KIT - SHORT (STOCK) | $48.83 | |
| 10A | TKMU0403 | |
HANDLE BAR RISER KIT - TALL | $54.39 | |
| 11 | HCNL1001 |  |
M10 LOCKNUT-1.5 THREAD PITCH | $1.64 |
