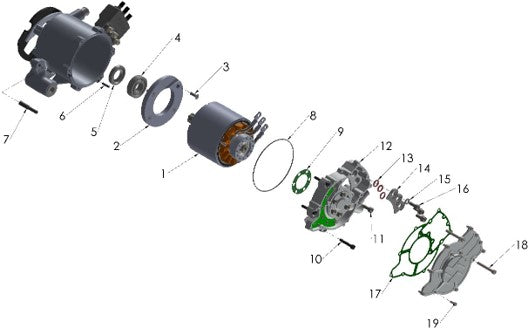

2025 CX5E Parts – Motor System - Internals

Ref #	Part #	Product	Price
2	JCCE50038	STUFFER - PUMP - COBRA MOTOR	$15.88
3	HCFH0516	M5 X 16 FLAT HEAD	$1.09
4	ECKGBR01	BEARING OUTPUT- 50 & 65	$29.91
5	JCCE50031	SEAL - MOTOR HOUSING 20x38x7 HSMSA10 RG	$12.88
6	ECDC0051	DOWEL PIN 4X16.0	$2.20
7	DCCE10011	STUD - REAR BATTERY MOUNT M8 TO M6	$4.95
	ECC60107	STUD - CYLINDER HEAD 6MM X 41MM	$5.43
8	ZCCE5OR03	ORING - 2 mm Wide 102 mm ID	$9.88
9	ZCCE50002	GASKET - STATOR TUBE TO CASE - .4 THICK	$9.88
10	HCBC0540	M5 x 0.8 - 40 - SHCS - DIN 912 ISO 4762 CL 12.9 - ZINC	$1.09
11	HCBC0530	M5 X 30 SHCS ZINC	$1.09
12	JCCEMU001	HOUSING - MOTOR - WIRE SIDE	$178.88
13	ZCCEMUOR1	ORING - 2.0mm X 9.5mm ID - MOTOR HOUSING	$2.28
14	JCCE50037	INSULATOR - PHASE - COBRA MOTOR	$23.21
15	HCWF0601	M6 FLAT WASHER DIN 125A ZINC CLEAR	$0.53
16	HCBC0601	R/B HCBC0616 - M6 X 16 SHCS ZINC	$1.09
17	ZCCEMU001	GASKET - PHASE COVER TO CASE	$15.88
19	HCBC0410	M4X10 SHCS ZINC	$1.09
	HCBC0408	M4 X 8 SHCS CLEAR ZINC	$1.09
ACCY	MCMUMF32	ELECTRIC MOTOR FLUID - 32 OZ BOTTLE	$28.88
