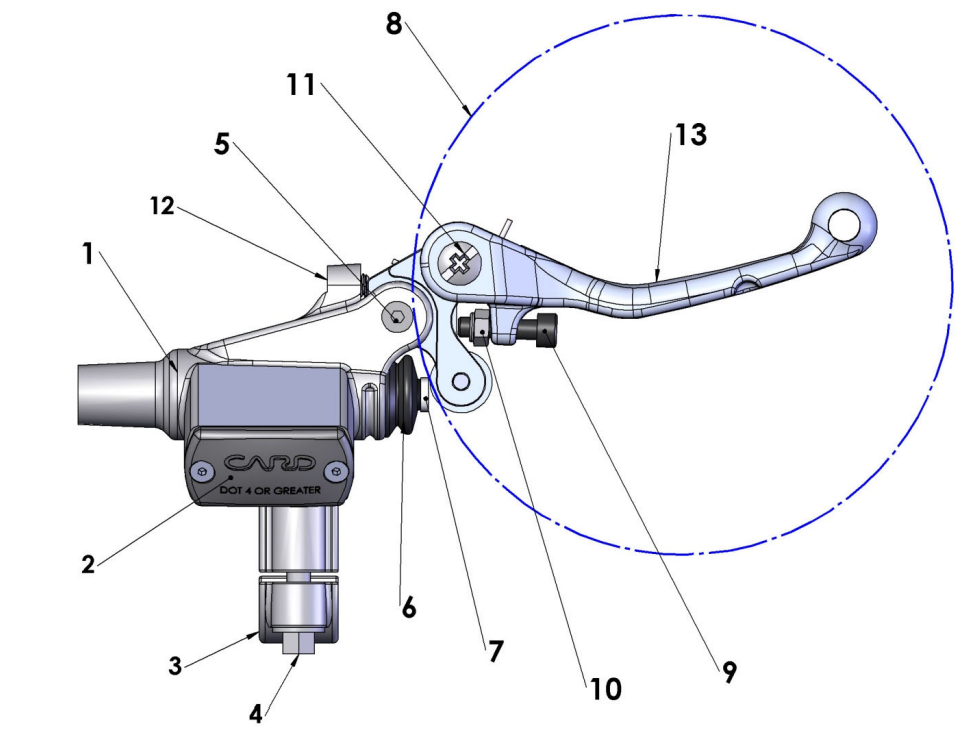

2024 CX65 Parts – Front Brakes – Master Cylinder

Ref #	Part #	Product	Price
0	BAC60017	BRAKE ASSEMBLY - FRONT - CARD 4 PISTON 11MM MASTER	$288.08
1	BAC60016	R/B BAMU0006 -MASTER CYL ASM - 11MM FRONT BRAKE	$176.80
2	BKC60008	CAP & BLADDER KIT W 2 SCREWS - BRAKE & CLUTCH - ZL150	$9.88
3	BCC60058	M/C CLAMP ZL150 - BRAKE AND CLUTCH	$17.67
4	HCBF1625	M6 X 25 FLANGED HD HEX 8MM ZINC FOR CARD MASTER CYLINDERS	$1.09
5	BCMU0060	BOLT - LEVER PIVOT - CARD	$14.33
6	BCC60017	BOOT - BRAKE AND CLUTCH MASTER CYLINDER PISTON COVER	$3.87
7	BKC60015	REBUILD KIT - FRONT CX65 CARD MASTER 11MM DIA - BUSHING STYL	$36.70
9	HCBC0502	M5 x 0.8 - 20 - SHCS - DIN 912 ISO 4762 CL12.9 - ZINC	$1.09
10	HCNL0501	M5 LOCKNUT	$1.09
12	HCSS0610	SET SCREW-M6-1 x 10mm LG FLAT POINT	$1.09
ACCESSORY	BKC60004	REBUILD KIT - FRONT CX65 CARD MASTER - 11MM DIA- 2012 - 2018	$36.70
NOT SHOWN	BCMU0116	COVER - BRAKE & CLUTCH M/C - ROLLER LEVER STYLE - ALL BIKES	$12.11
NOT SHOWN	CCC60026	SPRING - LEVER RETURN - CLUTCH & BRAKE	$7.65
NOT SHOWN	CCC60025	SPACER - SPRING CENTERING - LEVER PIVOT	$5.43
NOT SHOWN	BCC60054B	HOSE - FRONT BRAKE - BENT - CX65	$89.00
