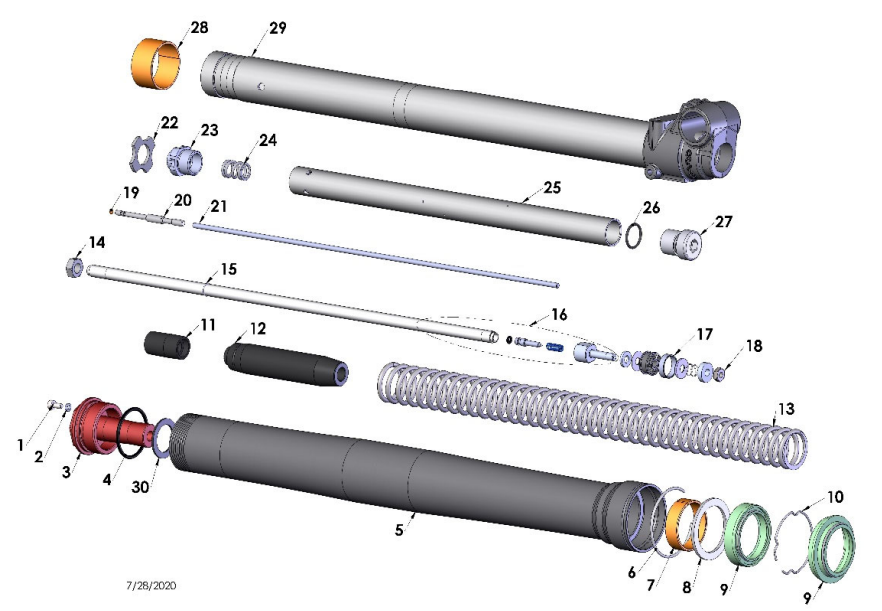

2024 CX65 Parts – Fork – Leg Assembly – Non-Brake Side

Note: Products marked with an asterisk (*) are currently out of stock and on backorder. They may take additional time to deliver and will not arrive with the rest of your order.

Ref #	Part #	Product	Price	Quantity
1	HCBC0408	M4 X 8 SHCS CLEAR ZINC*	$1.09	Back Order
2	ZCKG0001	GASKET BLEED SCREW FORK	$0.86
3	KCC60044R	FORK CAP NON-BRAKE SIDE SMART 37MM*	$96.23	Back Order
4	ZCC60011	O-RING 37MM FORK CAP	$2.76
5	KCC60037	FORK - OUTER TUBE 37MM*	$232.44	Back Order
6	KCC60043	RING CLIP - FORK OUTER WEAR 37MM*	$5.43	Back Order
7	KCC60041	FORK GLIDE RING BOTTOM 37MM*	$14.33	Back Order
8	KCC60047	SPACER - FORK SEAL - 37MM*	$7.65	Back Order
9	KCC60039	FORK SEAL & SWIPER KIT 37MM - SKF*	$41.04	Back Order
10	KCC60066	RING CLIP - FORK SEAL RETAINER 37MM*	$5.43	Back Order
11	KCC60067	FORK - JOUNCE BUMPER*	$8.32	Back Order
12	KCC60064	GUIDE - FORK SPRING - 37MM*	$22.24	Back Order
13	KCC63726	SPRING - FORK .26 KG/MM (SINGLE)*	$48.88	Back Order
13	KCC63724	SPRING - FORK .24 KG/MM (SINGLE)*	$48.88	Back Order
13	KCC63728	SPRING - FORK .28 KG/MM (SINGLE)*	$48.88	Back Order
14	HCNJ3824	NUT JAM 3/8-24 CLASS 8*	$3.32	Back Order
15	KCC60068	FORK - RING CLIP - SPRING GUIDE RETAINER*	$4.76	Back Order
16	KAC60003	DAMPER ROD ASSEMBLY 37MM*	$98.46	Back Order
17	KCCS0018	FORK - MID VALVE GLIDE RING*	$9.88	Back Order
19	BCKG0033	ORING - 2.1MM ID - 1MM - BUNA*	$2.20	Back Order
20	KCC60052	FORK ADJUSTMENT SCREW TOP - LONG*	$51.72	Back Order
21	KCC60049	FORK ADJUSTER PIN*	$19.90	Back Order
22	KCC60042	PERCH - FORK SPRING - HARDENED - 37MM*	$9.43	Back Order
23	KCMU0013	FORK - CARTRIDGE CAP*	$32.14	Back Order
24	KCKG0050	FORK - TOP OUT SPRING*	$8.77	Back Order
25	KCC60056	FORK CARTRIDGE TUBE - SMART LEG*	$61.07	Back Order
26	ZCKGB017	O-RING FORK BOTTOM PLUG	$2.20
27	KCC60057	FORK - BOTTOM PLUG - SMART LEG*	$32.14	Back Order
28	KCC60036	FORK GLIDE RING TOP 37MM*	$14.33	Back Order
29	KAC60002	FORK LOWER COMPLETE NON-BRAKE SIDE - 37MM*	$221.31	Back Order
