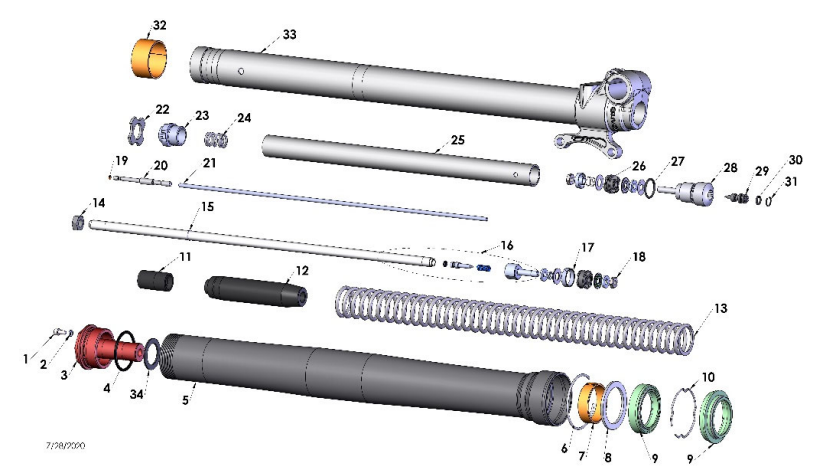

2024 CX65 Parts – Fork – Leg Assembly – Brake Side

Note: Products marked with an asterisk (*) are currently out of stock and on backorder. They may take additional time to deliver and will not arrive with the rest of your order.

Ref #	Part #	Product	Price
1	HCBC0408	M4 X 8 SHCS CLEAR ZINC	$1.09
2	ZCKG0001	GASKET BLEED SCREW FORK	$0.86
3	KCC60044L	FORK CAP BRAKE SIDE 37MM	$96.23
4	ZCC60011	O-RING 37MM FORK CAP	$2.76
5	KCC60037	FORK - OUTER TUBE 37MM	$232.44
6	KCC60043	RING CLIP - FORK OUTER WEAR 37MM	$5.43
7	KCC60041	FORK GLIDE RING BOTTOM 37MM	$14.33
8	KCC60047	SPACER - FORK SEAL - 37MM	$7.65
9	KCC60039	FORK SEAL & SWIPER KIT 37MM - SKF	$41.04
10	KCC60066	RING CLIP - FORK SEAL RETAINER 37MM	$5.43
11	KCC60067	FORK - JOUNCE BUMPER	$8.32
12	KCC60064	GUIDE - FORK SPRING - 37MM	$22.24
13	KCC63726	SPRING - FORK .26 KG/MM (SINGLE)	$48.88
13	KCC63724	SPRING - FORK .24 KG/MM (SINGLE)	$48.88
13	KCC63728	SPRING - FORK .28 KG/MM (SINGLE)	$48.88
14	HCNJ3824	NUT JAM 3/8-24 CLASS 8	$3.32
15	KCC60068	FORK - RING CLIP - SPRING GUIDE RETAINER	$4.76
16	KAC60003	DAMPER ROD ASSEMBLY 37MM	$98.46
17	KCCS0018	FORK - MID VALVE GLIDE RING	$9.88
18	HCNJ0601	6MM JAM NUT	$1.09
19	BCKG0033	ORING - 2.1MM ID - 1MM - BUNA	$2.20
20	KCC60052	FORK ADJUSTMENT SCREW TOP - LONG	$51.72
21	KCC60049	FORK ADJUSTER PIN	$19.90
22	KCC60042	PERCH - FORK SPRING - HARDENED - 37MM	$9.43
23	KCMU0013	FORK - CARTRIDGE CAP	$32.14
24	KCKG0050	FORK - TOP OUT SPRING	$8.77
25	KCKG0019	CARTRIDGE TUBE - JR KG 65 FORKS - ALUM	$49.94
26	KCMU0021	O-RING - FORK - BASE VALVE & COMP ADJ	$1.09
27	ZCKGB017	O-RING FORK BOTTOM PLUG	$2.20
28	KCC60069	FORK - BOTTOM PLUG - ADJUSTABLE COMPRESSION	$76.20
29	KCC60048	FORK BOTTOM PLUG ADJUSTMENT SCREW	$33.25
30	ZCMUOR03	O-RING 6.07X1.78 SILICONE	$1.09
32	KCC60036	FORK GLIDE RING TOP 37MM	$14.33
33	KAC60001	FORK LOWER COMPLETE BRAKE SIDE - 37MM	$221.31
