2024 CX5E Parts – Motor System - Internals
Add to Cart
Add to Cart
Note: Products marked with an asterisk (*) are currently out of stock and on backorder. They may take additional time to deliver and will not arrive with the rest of your order.

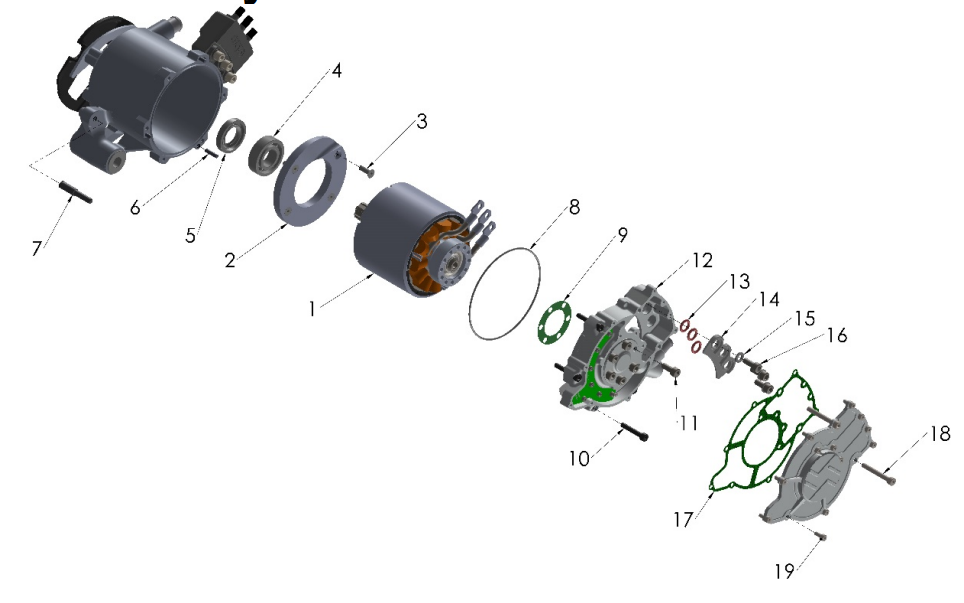

| Ref # | Part # | Image | Product | Price | Quantity |
|---|---|---|---|---|---|
| 2 | JCCE50038 | |
STUFFER - PUMP - COBRA MOTOR* | $15.88 | Back Order |
| 3 | HCFH0516 |  |
M5 X 16 FLAT HEAD* | $1.09 | Back Order |
| 4 | ECKGBR01 |  |
BEARING OUTPUT- 50 & 65 | $29.91 | |
| 5 | JCCE50031 | |
SEAL - MOTOR HOUSING 20x38x7 HSMSA10 RG* | $12.88 | Back Order |
| 6 | ECDC0051 | |
DOWEL PIN 4X16.0* | $2.20 | Back Order |
| 7 | DCCE10011 | |
STUD - REAR BATTERY MOUNT M8 TO M6* | $4.95 | Back Order |
| 0 | ECC60107 |  |
STUD - CYLINDER HEAD 6MM X 41MM* | $5.43 | Back Order |
| 8 | ZCCE5OR03 | |
ORING - 2 mm Wide 102 mm ID | $9.88 | |
| 10 | HCBC0504 | |
M5 X 40 SHCS ZINC* | $1.09 | Back Order |
| 11 | HCBC0503 | |
M5 X 30 SHCS ZINC* | $1.09 | Back Order |
| 12 | JCCEMU001 | |
HOUSING - MOTOR - WIRE SIDE* | $178.88 | Back Order |
| 13 | ZCCEMUOR1 | |
ORING - 2.0mm X 9.5mm ID - MOTOR HOUSING | $2.28 | |
| 14 | JCCE50037 | |
INSULATOR - PHASE - COBRA MOTOR* | $23.21 | Back Order |
| 15 | HCWF0601 |  |
M6 FLAT WASHER DIN 125A ZINC CLEAR* | $0.53 | Back Order |
| 16 | HCBC0601 |  |
M6 X 16 SHCS ZINC* | $1.09 | Back Order |
| 0 | HCBC0408 |  |
M4 X 8 SHCS CLEAR ZINC* | $1.09 | Back Order |
| ACCY | MCMUMF32 | |
ELECTRIC MOTOR FLUID - 32 OZ BOTTLE* | $28.88 | Back Order |
