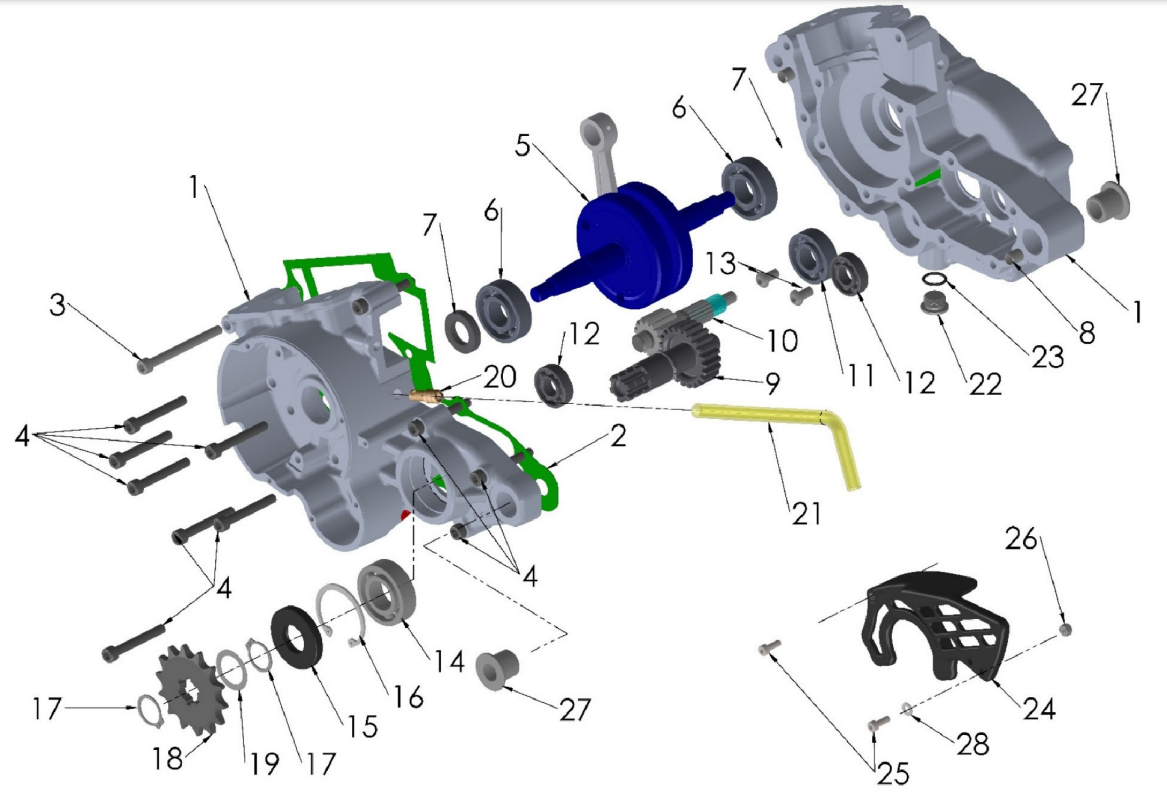

2024 CX50JR Parts - Engine Bottom End and Transmission

Note: Products marked with an asterisk (*) are currently out of stock and on backorder. They may take additional time to deliver and will not arrive with the rest of your order.

Ref #	Part #	Product	Price	Quantity
1	EKMU2023	ENGINE CASE SET - 2023 VENOM - WITH BEARINGS AND SEALS*	$598.88	Back Order
2	ZCMU0015	GASKET - CENTERCASE - CX50 VENOM	$14.33
3	HCBC0665	M6 X 65 SHCS ZINC*	$1.54	Back Order
4	HCBC0604	M6 X 35 SHCS ZINC*	$1.09	Back Order
5	ECMU0258	CRANKSHAFT - CX50 - VENOM*	$261.37	Back Order
6	ECMU0016	BEARING - 50CC CRANKSHAFT & 65CC TRANS*	$22.12	Back Order
7	ECMU0118	SEAL - CRANKSHAFT - 50CC STD*	$11.44	Back Order
8	ECMU0122	DOWEL - HOLLOW - 8.4 x 14 x 7 - AISI 1215*	$2.20	Back Order
9	ECMU0999	GEAR OUTPUT WIDE TOOTH 50*	$165.67	Back Order
10	ECMU0268	GEAR - INPUT TRANSMISSION - CX50 VENOM*	$133.40	Back Order
11	ECMU0001	BEARING - TRANS. SEC. GEAR*	$22.12	Back Order
12	ECKG0031	BEARING 6001 NO SEALS*	$9.88	Back Order
14	ECKGBR01	BEARING OUTPUT- 50 & 65*	$29.91	Back Order
15	ECMU0236	SEAL OUTPUT - CX50 VENOM*	$10.99	Back Order
16	ECMU0237	SNAP RING - OUTPUT BEARING - CX50 VENOM*	$3.87	Back Order
17	ECKGSR03	SNAP RING-OUTPUT- ext 20mm - FOR OUTPUT SHAFT*	$2.54	Back Order
18	PCKG0015	SPROCKET 15T*	$18.78	Back Order
19A	ECMU0176	SHIM - SPROCKET - 0.2 THK 20/28 ID/OD*	$3.32	Back Order
19B	ECMU0177	SHIM - SPROCKET - 0.3 THK 20/28 ID/OD*	$3.32	Back Order
19C	ECMU0178	SHIM - SPROCKET - 0.5 THK 20/28 ID/OD*	$3.32	Back Order
20	ECMU0557	HOSE CRANKCASE VENT 2010 - CURRENT 50cc*	$8.88	Back Order
21	ECMU0272	PLUG - OIL FILL OIL DRAIN COOLANT VENOM	$12.11
22	ZCMUB014	O-RING - KICK SHAFT & OIL FILL PLUG	$1.42
23	ECMU0280	GUARD - COUNTERSHAFT SPROCKET - CX50 VENOM*	$33.25	Back Order
24	HCBC0412	M4 X 12 - SHCS - ZINC*	$1.09	Back Order
25	HCNL0401	4MM LOCK NUT*	$1.09	Back Order
26	ECC60028	BUSHING - ENGINE PIVOT - 12MM*	$13.22	Back Order
27	HCWF0401	4MM FLAT WASHER*	$0.53	Back Order
28	ZKMU2016	GASKET KIT - COMPLETE - 50CC VENOM	$65.52
