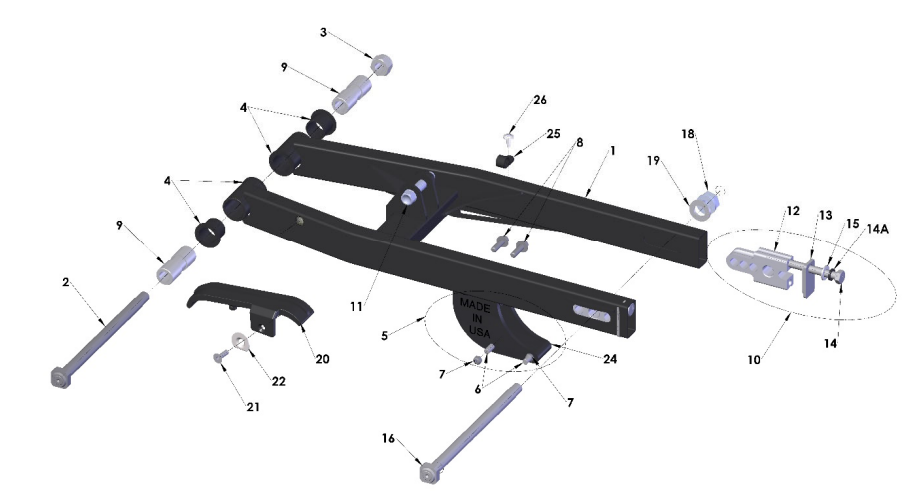

2024 CX50FWE Parts – Swingarm Assembly

2024 CX50FWE Parts – Swingarm Assembly
Add to Cart
Note: Products marked with an asterisk (*) are currently out of stock and on backorder. They may take additional time to deliver and will not arrive with the rest of your order.
Ref # Part # Image Product Price Quantity
1 GACS2021 SWINGARM WELDED ASSY- 2021 KING $205.73
2 GCMU0021 BOLT - TITANIUM - SWINGARM PIVOT - 2021 CX50 SHORTER $143.42
3 HCNL1201 M12-1.25 LOCKNUT FINE THREAD $3.20
4 GCMU0001 SWINGARM BUSHING 1-INDIVIDUAL $10.55
5 PAFW0001 CHAIN BLOCK ASSY - FACTORY WORKS EDITION - FWE $49.94
7 HCNL0601 M6 LOCKNUT $1.09
8 HCBF0620 M6 X 20 FLANGE HD HEX 8MM ZINC 8.8 $1.09
9 GCCS0015 SPACER -SWINGARM PIVOT TUBE - 2021 KING $13.67
10 FAMU0005 WHEEL PULL ASSEMBLY $32.25
12 FCMU0203 WHEEL PULL $24.35
13 FCMU0202 ENDCAP - WHEEL PULL - KING & CM $8.77
14 HCBH0810 M8 X 65 HH FULL THREADS ZINC $1.54
14A HCWL0801 8MM LOCK WASHER STANDARD $0.53
16 GCMU0020 BOLT - TITANIUM - SWINGARM PIVOT and AXLE - CX50 $143.42
18 WCMU0038 NUT - 12MM ACORN - ALUM $20.79
19 HCWF1202 12MM FLAT WASHER $0.53
20 GCMU0041 SWINGARM CHAIN GUARD - CX50 - WITH MOHAWK AND FOOT $16.56
21 HCFH0516 M5 X 16 FLAT HEAD $1.09
22 GCMU0038 WASHER - RETAINING - SWINGARM GUARD $4.32
23 HCNL0501 M5 LOCKNUT $1.09
24 PCKG0004 CHAIN GUIDE - SLIDER BOTTOM $10.99
25 HCCC0006 CABLE CLAMP-7/16 INCH BLACK $1.09
26 HCPP0832 #8X1/2 SELF TAPPING SCREW $1.09
