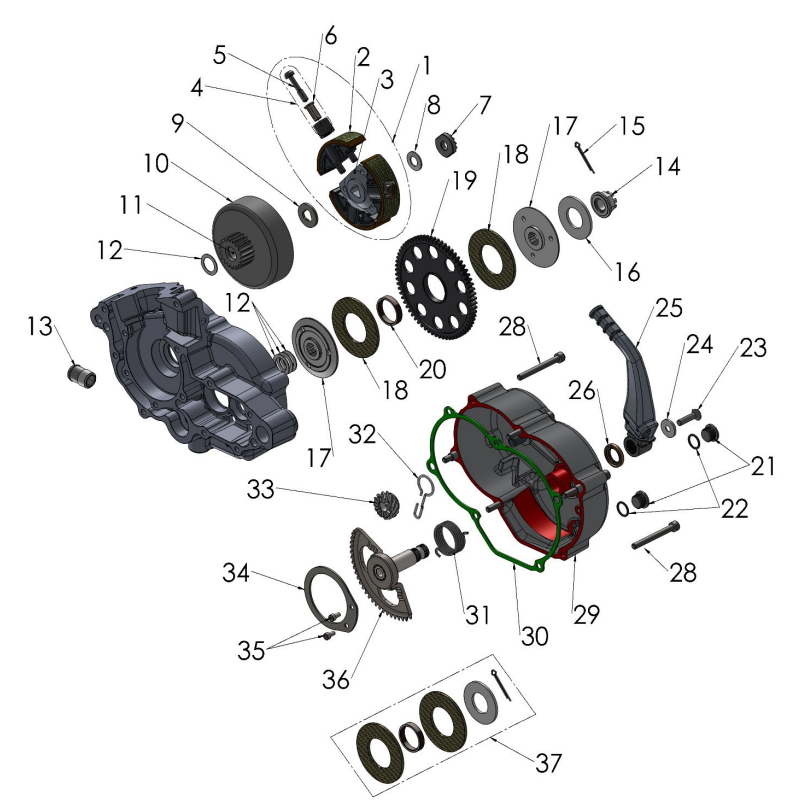

Ref # Part # Image Product Price Quantity
1 CAFW0500 CLUTCH - KING/FW - COMPLETE ASSY - 5GX* $321.46 Back Order
2 CAFW0050 3 SHOES & STACKS W BOLTS - KING/FW - 5GX* $205.73 Back Order
3 CCMU0005 CLUTCH ARBOR - TRI-SIDE* $127.84 Back Order
4 CAFW0005 WASHER STACKS - KING/FW - SET OF 3 - CLUTCH - 5GX* $41.04 Back Order
5 HCBT0001 BOLT - TORX - 5GX CLUTCH - M6 X 29 - SPECIAL* $8.77 Back Order
6 CCMU0008 SLEEVE - CLUTCH STACK 5GX* $4.32 Back Order
7 ECMU0018 CRANKSHAFT START NUT - CLUTCH NUT* $31.02 Back Order
8 ECDC0030 BELLVILLE - LOCK WASHER - 10MM* $3.20 Back Order
9 CCMU0007 SHIM - CLUTCH BACKING SPACER - 3 SPLINE* $14.33 Back Order
10 ECMU0120 CLUTCH BASKET NEDL BRNG - V4* $99.57 Back Order
11 ECMU0119 BEARING - NEEDLE - CLUTCH 3 SHOE* $14.33 Back Order
12 ECMU0040 SHIM - CLUTCH TO HUB SPACER 22 x 0.76 x 15* $2.76 Back Order
13 ECMU0132 FITTING-COOLANT* $27.68 Back Order
14 ECMU0307 NUT V3 CFD* $20.56 Back Order
15 HCCP0010 COTTERPIN (CFD) 1/8 X 7/8\" 18-8 STAINLESS* $0.53 Back Order
16 ECMU0308 BELLEVILLE SPRING V3 CFD* $10.99 Back Order
17 ECMU0306 SLIP HUB V3 CFD* $42.82 Back Order
18 ECMU0249 FRICTION MATERIAL V3 CFD THICK* $18.78 Back Order
19 ECMU0301 GEAR V3 CFD* $176.80 Back Order
20 ECMU0305 BUSHING V3 CFD 7MM* $16.22 Back Order
21 ECMU0272BLK PLUG - OIL FILL OIL DRAIN COOLANT VENOM BLACK* $12.11 Back Order
22 ZCMUB014 O-RING - KICK SHAFT & OIL FILL PLUG $1.42
23 HCFH0616 M6 X 16 FLAT HEAD W ZINC* $1.09 Back Order
24 ECMU0250 WASHER - KICK ARM* $9.88 Back Order
25 EAMU0011 LEVER KICK START ASSEMBLY* $83.32 Back Order
26 ECDC0078 SEAL - KICKSTARTER* $4.32 Back Order
28 HCBC0608 M6 X 55 SHCS ZINC* $1.09 Back Order
29 ECMU0263 COVER -CLUTCH MACHINED W SEAL AND PIN - CX50 VENOM* $154.54 Back Order
30 ZCMU0017 GASKET - CLUTCH COVER - CX50 VENOM $14.78
31 ECMU0273 SPRING - KICKSTART RETURN - CX50 VENOM* $15.56 Back Order
32 ECMUSP01 SPRING - KICK START DOG-SM.SPRING* $8.88 Back Order
33 ECMU0207 KICKSTARTER SMALL GEAR* $37.70 Back Order
34 ECMU0278 BRACKET - KICK SHAFT - CX50 VENOM* $7.21 Back Order
35 HCBC0508 M5 X 8mm SHCS CLEAR ZINC* $4.43 Back Order
36 HKCP0001 COTTERPIN PACK OF 10 1/8\" X 1 1/4\"* $4.43 Back Order
KIT EKMU0002 KICKSTART PIVOT KIT SPRING-BALL-SCREW* $7.65 Back Order
KIT HKAM0022 HARDWARE KIT - CLUTCH SHIM* $29.50 Back Order
KIT EKMU0033 V3 CFD REFRESH KIT FOR 2011 & LATER* $50.61 Back Order
37-KIT MCMUTL40 TOOL - CFD - CHECK STOP PIN - VENOM* $27.68 Back Order
TOOL MCMUTL18 TOOL - SPROCKET SOCKET - HIGH TORQUE* $43.26 Back Order
