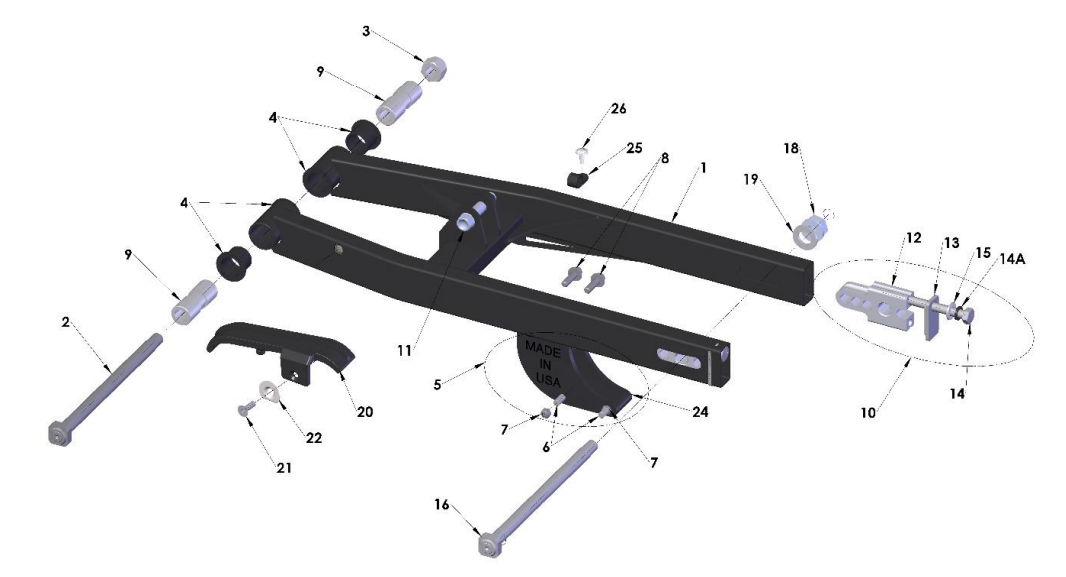

2022 CX50SRx FWE Parts – Swingarm Assembly

Item	Refrence #	Title	price	Quantity
1	GACS2021	Swingarm	$205.78	Out of stock
2	GCMU0021	Bolt - Ti - Swingarm Pivot And Axle - Cx50- Shorter	$143.48	Out of stock
3	HCNL1201	M12 Swingarm Lock Nut	$3.18	Out of stock
4	GCMU0001	Swingarm Bushing (4 Req’d)	$10.58	Out of stock
5	PAFW0001	Chain Guide Assembly Complete – Factory Works Edition	$49.98	Out of stock
6	HCBFT640	M6x40mm Flat Head Screw (2 Req’d)	$1.08	Out of stock
7	HCNL0601	M6 Locknut (2 Req’d)	$1.08	Out of stock
8	HCBF0620	M6X20mm Flange Head Bolt (2 Req’d)	$1.08	Out of stock
9	GCCS0015	Swingarm Pivot Tube Spacer 2021 (2 Req’d)	$13.68	Out of stock
10	FAMU0005	Wheel Pull Assembly (Block, Cap, Bolt And Washer)	$32.28	Out of stock
11	HCBF1040	M10x40mm Lower Shock Mount Bolt	$7.68	Out of stock
12	FCMU0203	Wheel Pull	$24.38	Out of stock
13	FCMU0202	Wheel Pull Endcap	$8.78	Out of stock
14	HCBH0810	M8x65mm Wheel Pull Bolt	$1.58	Out of stock
15	HCWL0801	8mm Lock Washer 14A	$0.58	Out of stock
16	HCWF0801	8mm Wheel Pull Washer 15	$0.58	Out of stock
17	GCMU0020	Bolt - Ti - Swingarm Pivot And Axle - Cx50 16	$143.48	Out of stock
18	WCMU0038	Nut - 12mm Acorn - Alum 18	$20.78	Out of stock
19	HCWF1202	12mm FLAT WASHER 19	$0.58	Out of stock
20	GCMU0041	Swingarm Chain Guard - Cx50 - With Mohawk And Foot 20	$16.58	Out of stock
21	HCFH0516	Flat Head Screw 21	$1.08	Out of stock
22	GCMU0038	Washer - Special 22	$4.38	Out of stock
23	HCNL0501	Lock Nut	$1.08	Out of stock
24	PCKG0004	Bottom Chain Slider	$10.98	Out of stock
25	HCCC0006	Clamp - Brake Hose 25	$1.08	Out of stock
26	HCPP0832	Fastener – ½” Self Tapping 26	$1.08	Out of stock
