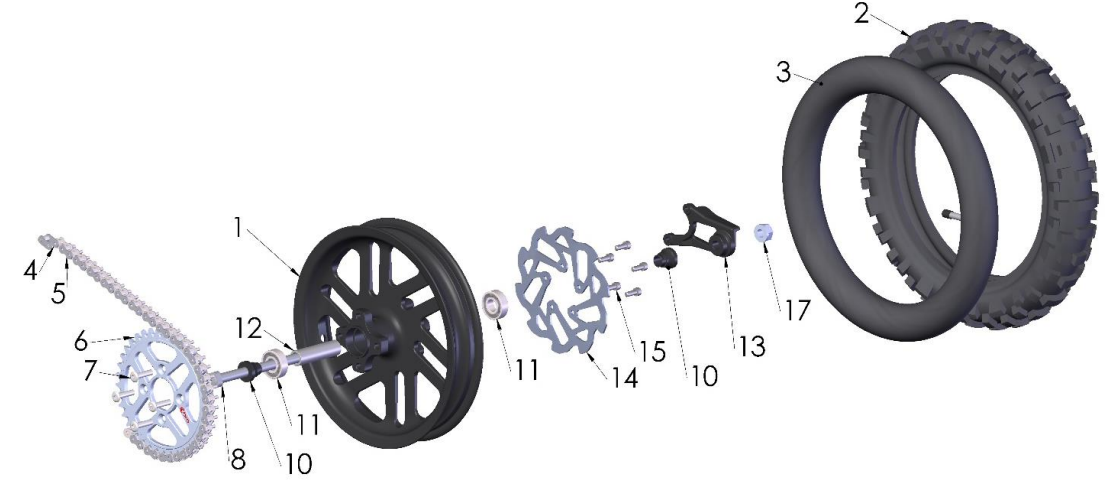

2022-CX50SRx-FWE Parts- Rear Wheel

Ref #	Part #	Product	Price
1	WAMUR021BLK	WHEEL ASSEMBLY- REAR - BLK	$360.41
2	WCMU1075D32	R/B WCMU1075D33 - TIRE - REAR - 70/100-10 - DUNLOP MX3S	$42.27
3	WCMUTU10	TUBE - 250/275 - 10 INCH	$9.43
4	PCMU0001	CHAIN - MASTER LINK	$2.20
5	PCMU0102	R/B PCMU0106 - CHAIN - CX50 - 102L NEEDS CUT FOR KING/JR/P3	$24.35
6	PCC50238BLK	SPROCKET 38T - 415 - BLACK ANODIZE - PDM BOLTS	$69.88
7	HCSP0701	7MM SPROCKET BOLT - 2018	$2.76
7A	HCWF0701	7MM FLAT WASHER	$0.53
7B	HCNL0701	M7 LOCKNUT	$1.09
8	GCMU0020	BOLT - TITANIUM - SWINGARM PIVOT and AXLE - CX50	$143.42
10	WCMU0101BLK	SPACER WHEEL FR & RR LH - BLACK	$14.33
11	WCMU0120	BEARING - WHEEL-SEALED HD	$20.01
12	WCMU0041	SPACER - WHEEL BEARING - REAR 50CC - 2018 - CURRENT	$14.33
13	BCMU0045	BRAKE CARRIER - 10IN REAR - CARD 2 PISTON	$76.65
14	BCMU0222	ROTOR - BRAKE - FRONT/REAR - 50CC CARD	$65.52
15	HCBC0514	M5 X 14 SHCS ZINC	$1.09
17	WCMU0038	NUT - 12MM ACORN - ALUM	$20.79
ACCESSORY	HKMU0002	BOLT KIT - REAR SPROCKET - FLAT HEAD- CX50	$16.67
