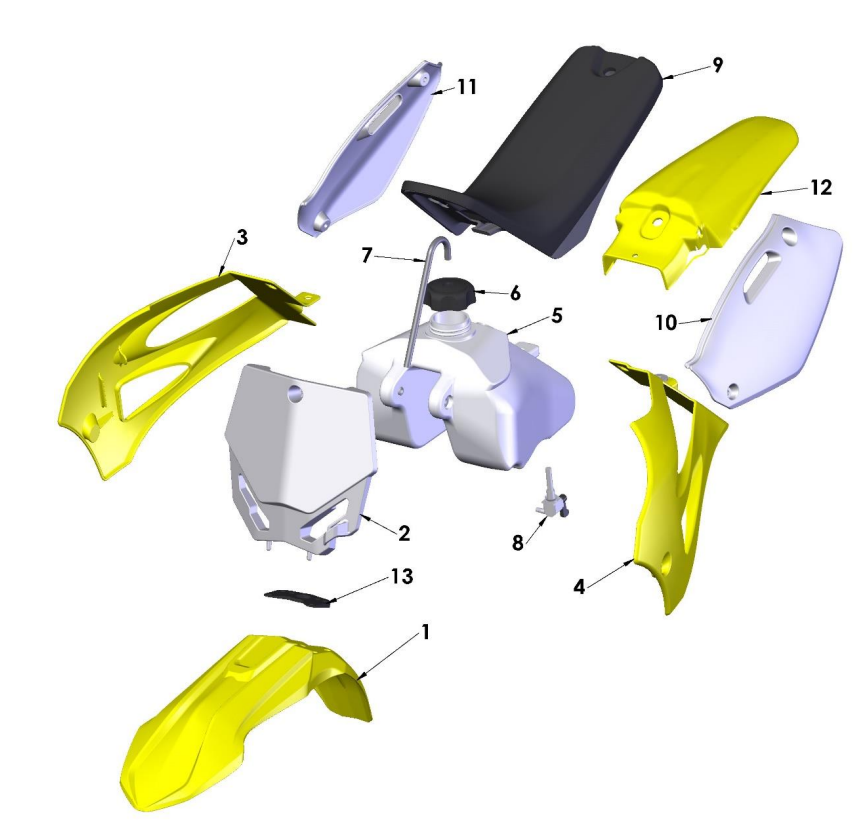

2022-CX50JR Parts- Plastic & Seat

Ref #	Part #	Product	Price

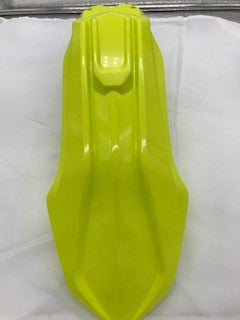

1	TCCS0009FXX	FENDER - FRONT - CX50SR - 2021 AND NEWER - FXX	$34.36

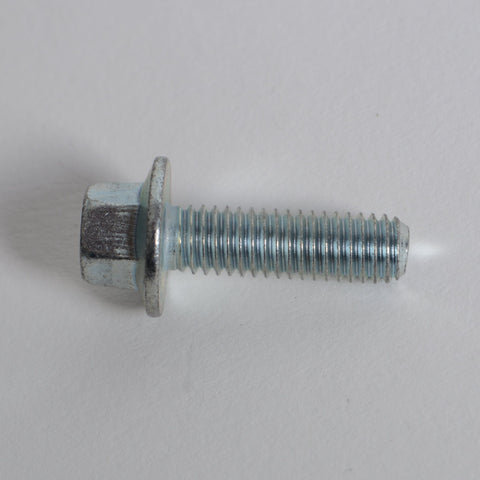

1A	HCBF0620	M6 X 20 FLANGE HD HEX 8MM ZINC 8.8	$1.09

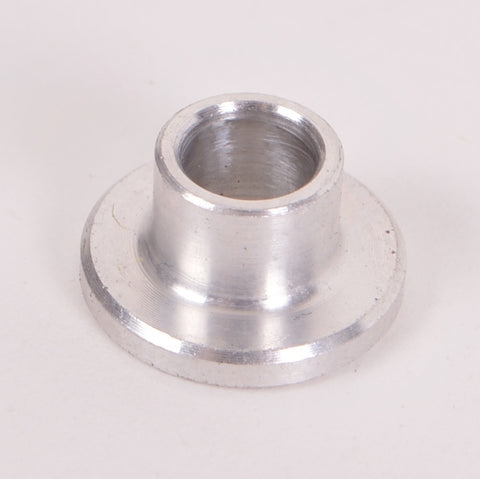

1B	TCC60019	WASHER - CHAIN SLIDER AND FORK GUARD	$2.76
2	TCMU0041WHT	NUMBER PLATE - FRONT - 2021 - WHITE	$20.56
2A	HCSP0610	BOLT - SHOULDER - 6MM ALUMINUM - ANODIZED CLEAR	$3.20
3 & 4	TCCJ0005FXX	SHROUD SET - JR/P3 - FXX	$47.72
5	TCCJ0010C	FUEL TANK - CLEAR/NATURAL - JR/P3 - 2017 & NEWER	$150.09

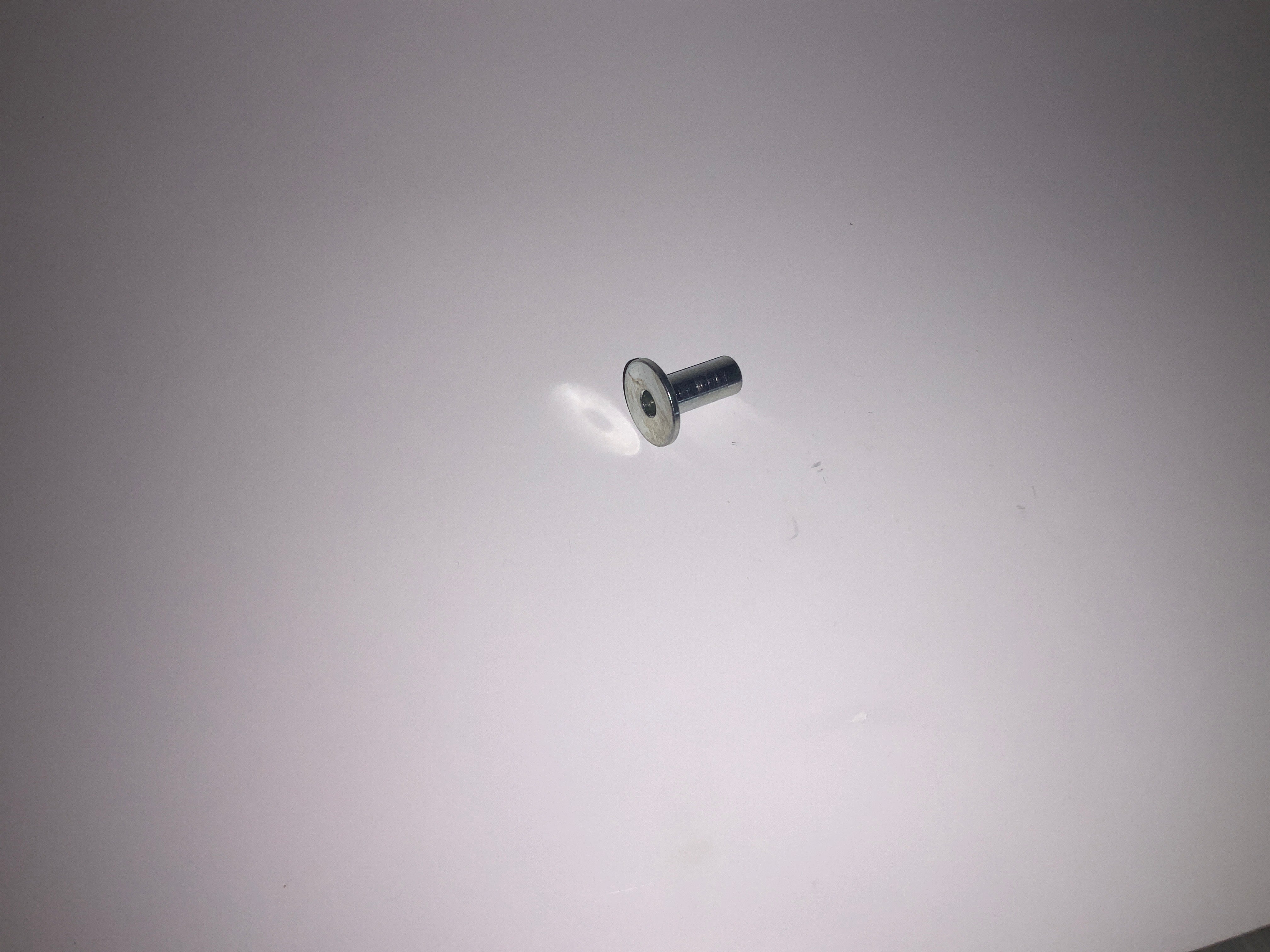

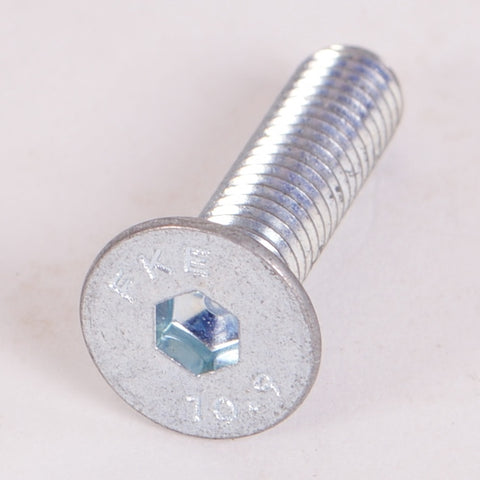

5A	HCFH0625	M6 X 25 FLAT HEAD W ZINC	$1.09

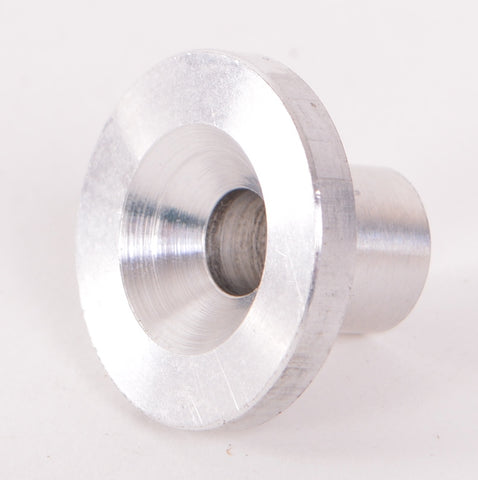

5B	TCHA0005	SPACER-SEAT MOUNT	$7.65
5C	TCHA0006	BUSHING-MOUNTING	$7.65

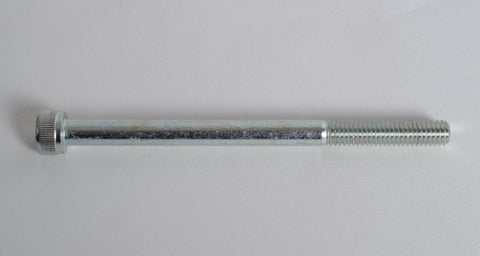

5D	HCBC0685	M6 X 85 SHCS ZINC	$1.54
5E	HCNL0601	M6 LOCKNUT	$1.09

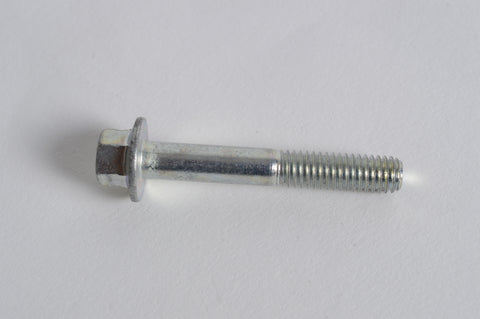

5F	HCBF0635	M6 X 35 FLANGE HD HEX 8MM ZINC 8.8	$1.09
5G	TCHA0004	BUSHING-REAR TANK MOUNTING	$9.88

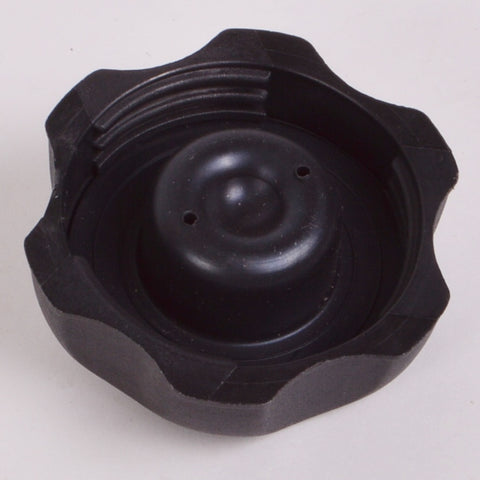

6	TCHA0002	CAP - FUEL TANK- 65/KING/JR/P3	$22.12

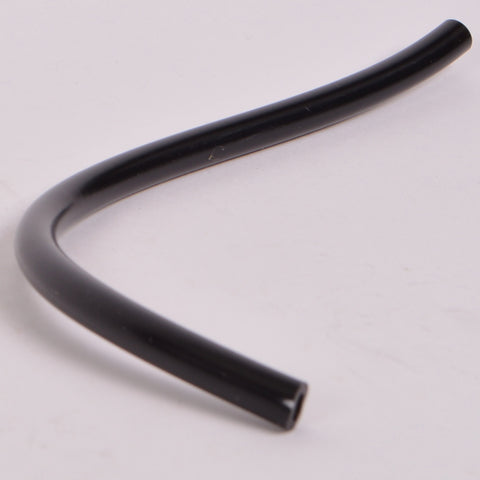

7	TCHA0003	HOSE FUEL TANK CAP - 65/KING/JR/P3	$2.76

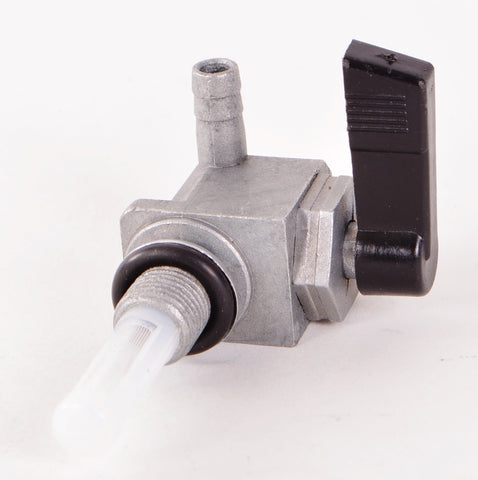

8	TCMU0151	PETCOCK - FUEL - NO RESERVE	$20.01
9	TCCM0007	SEAT - 50CC JR/P3 GRIPPER	$98.90
9A	TCCM0007COVER	SEAT - 50CC JR/P3 GRIPPER - COVER	$49.94
9B	HCBC0604	M6 X 35 SHCS ZINC	$1.09

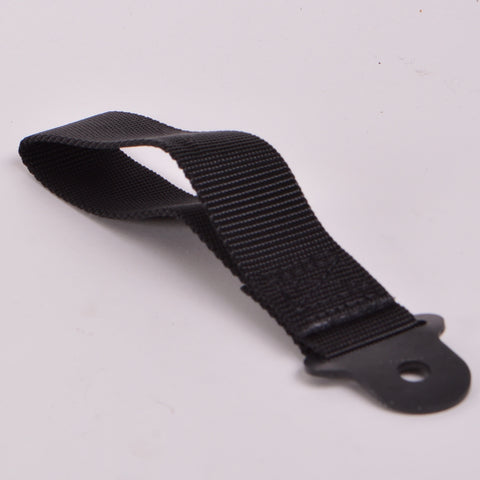

9C	MCMU0013	STRAP HANDLE JR/P3	$12.11
10 & 11	TCCJ0003W	NUMBER PLATES SIDE (SET) WHITE - JR/P3	$41.15
10A	HCBF0616	M6 X 16 FLANGED HD HEX 8MM ZINC	$1.09

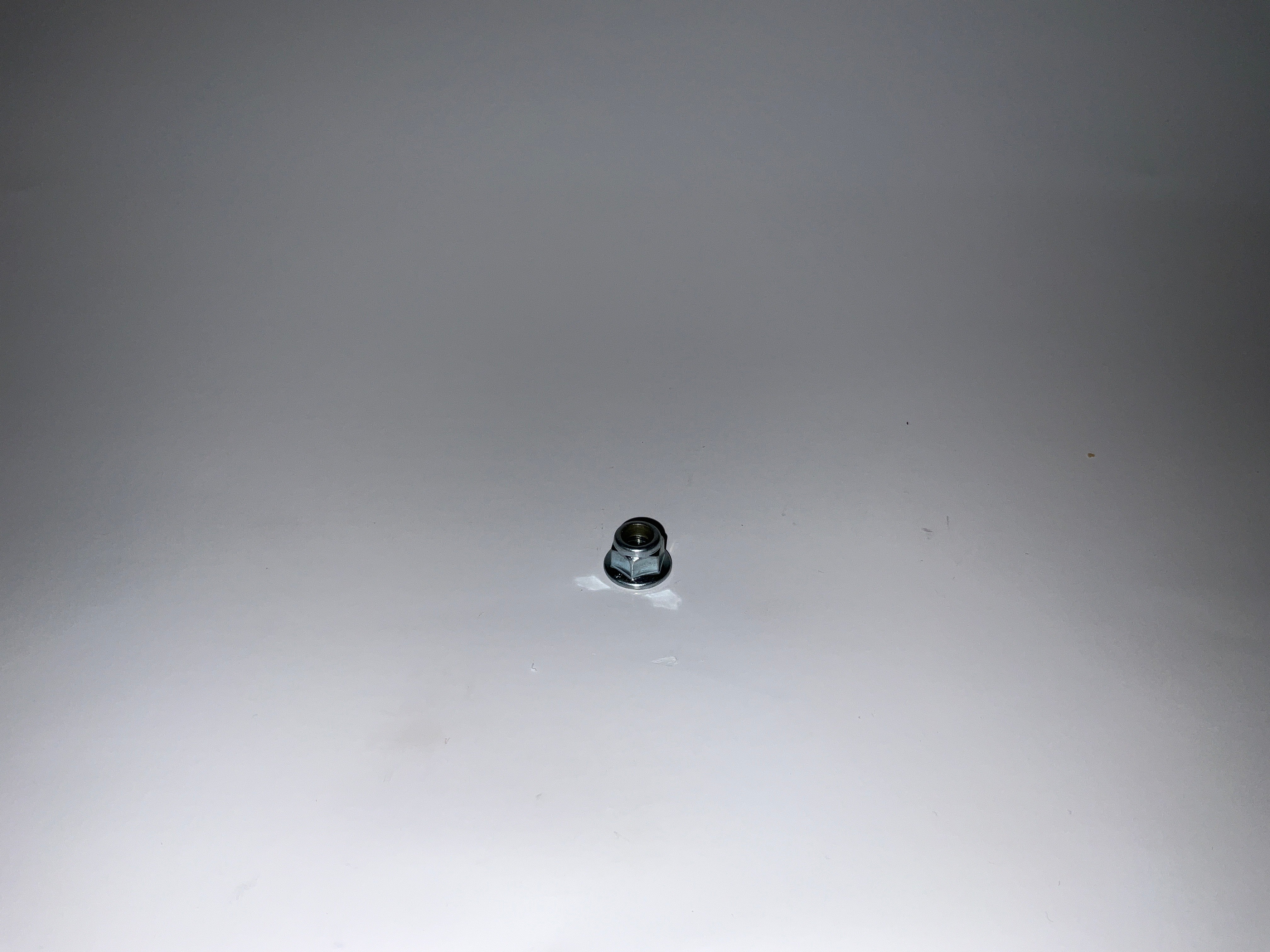

10C	HCNF0602	6MM NYLOC FLANGE NUT CLASS 10	$1.09
12	TCHA0112FXX	FENDER - REAR - JR/P3 - FXX	$27.82
13	FCMU0034	WEDGE - FENDER - JR/P3 FRONT	$17.66

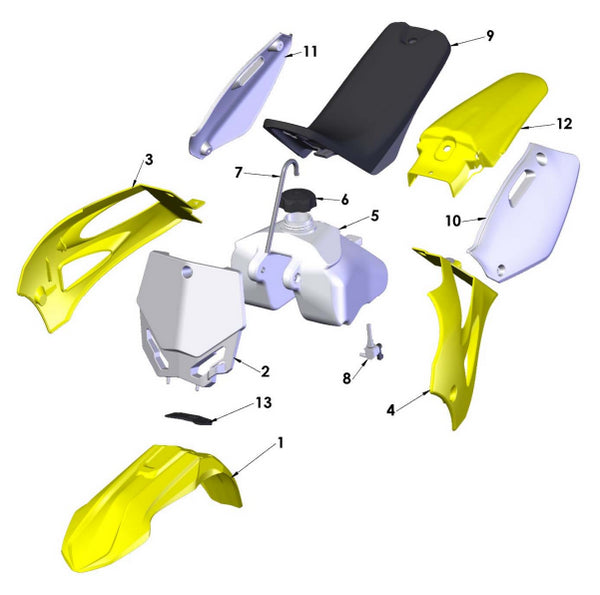

ACC’Y	TKCJ2022BLK	BODYWORK KIT - 2022 - JR/P3 - BLACK	$135.63
ACC’Y	TKCJ2022WHT	BODYWORK KIT - 2022 - JR/P3 - WHITE	$135.63
