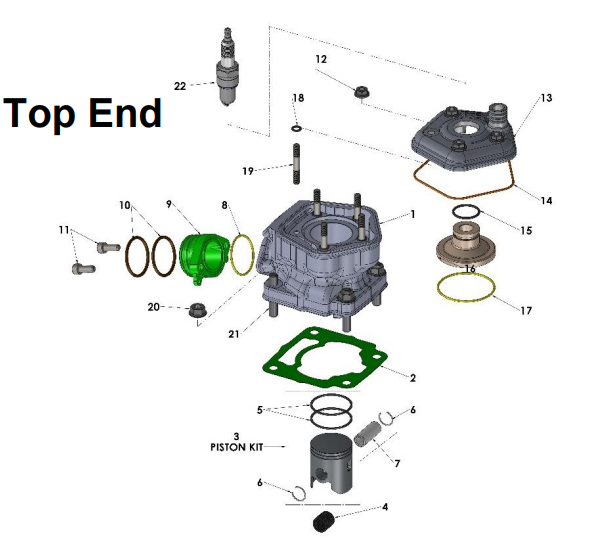

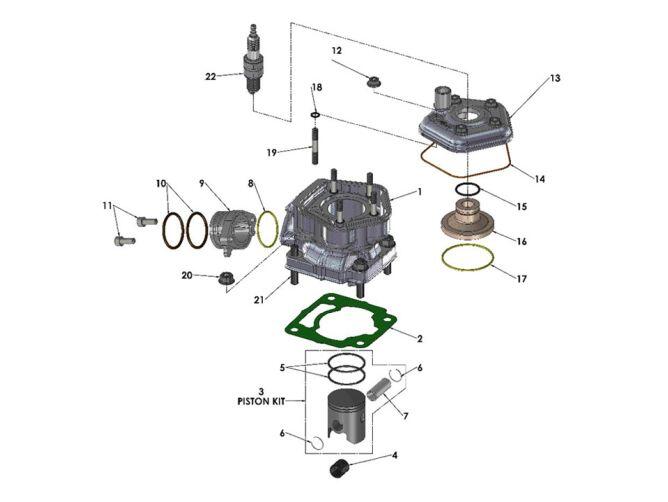

2022 CX50JR Parts – Engine – Top End
2022 CX50JR Parts – Engine – Top End
Item |
Refrence # |
Title |
price |
Quantity |
| 1 | EKMU0361 | Cylinder Kit (Includes Studs, Piston, Rings, Pin & Clips) | $510.68 |
Out of stock |
| 2 | ZCMU0102 | Base Gasket (0.20mm) Thick | $9.28 |
Out of stock |
| 3 | ZCMU0103 | Base Gasket (0.30mm) Thick 2 | $9.28 |
Out of stock |
| 4 | ZCMU0104 | Base Gasket (0.40mm) Thick 2 | $9.28 |
Out of stock |
| 5 | ZCMU0105 | Base Gasket (0.50mm) Thick 2 | $9.28 |
Out of stock |
| 6 | ZCMU0106 | Base Gasket (0.60mm) Thick 2 | $9.28 |
Out of stock |
| 7 | ZCMU0107 | Base Gasket (0.70mm) Thick 2 | $9.28 |
Out of stock |
| 8 | ZCMU0108 | Base Gasket (0.80mm) Thick 2 | $9.28 |
Out of stock |

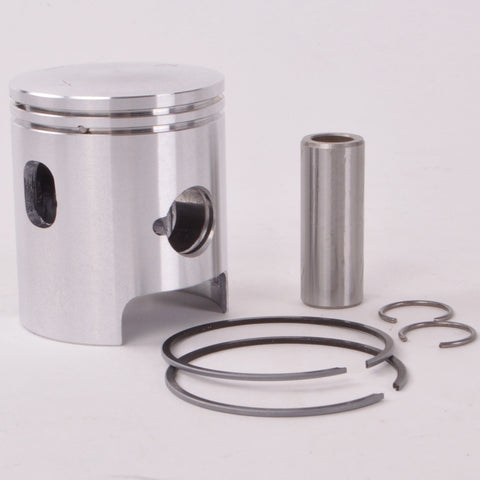

| 9 | ECMU0276A | Piston Kit – ‘a’ Size (B, C, And D Sizes Available) 3 | $104.48 |
Out of stock |
| 10 | ECMU0077 | Bearing, Wrist Pin 4 | $16.68 |
Out of stock |
| 11 | ECMU0155 | Piston Rings (2 Per Set) 5 | $32.18 |
Out of stock |
| 12 | ECMUSR00 | Snap Ring For Piston (2 Req'd) 6 | $4.48 |
Out of stock |
| 13 | ECKG0012 | Wrist Pin 7 | $17.68 |
Out of stock |
| 14 | ZCMUOR07 | O-ring, Exhaust Flange 8 | $4.48 |
Out of stock |
| 15 | ECMU0262 | Exhaust Flange 9 | $49.98 |
Out of stock |
| 16 | ZCMOTE11 | O-rings – Pipe To Flange (2 Req’d) 10 | $3.18 |
Out of stock |
| 17 | HCBC0612 | M6x12, Exhaust Flange Screw (2 Req'd) 11 | $1.08 |
Out of stock |
| 18 | HCNF0601 | 6mm Flange Nut (5 Req’d) 12 | $0.68 |
Out of stock |
| 19 | ECC60149 | Cylinder Head Outer 13 | $98.88 |
Out of stock |
| 20 | ZCC60009 | O-ring, Cylinder Head Large 14 | $7.68 |
Out of stock |
| 21 | ZCMUOR23 | O-ring Cylinder Head Small 15 | $4.98 |
Out of stock |
| 22 | ECMU0208 | Cylinder head, insert 16 | $98.88 |
Out of stock |
| 23 | ZCMUOR05 | O-ring Cylinder Head Medium - Yellow 17 | $8.88 |
Out of stock |
| 24 | ZCMUOR03 | O-ring Cylinder Stud (5 Req'd) 18 | $1.08 |
Out of stock |
| 25 | ECC60107 | 6mm Stud (5 Req’d) 19 | $5.48 |
Out of stock |
| 26 | HCNF0801 | 8mm Flange Nut (4 Req’d) 20 | $1.08 |
Out of stock |
| 27 | ECC60109 | Stud, Cylinder 8mm (4 Req’d) 21 | $7.28 |
Out of stock |
| 28 | ECMU0010I | Spark plug, autolite iridium 22 | $12.78 |
Out of stock |
| 29 | MCMUTL03 | Tool – Piston Stop TOOL | $14.48 |
Out of stock |
| 30 | ZKMUOR13 | Top End O-ring Kit ACCESORY | $8.09 |
Out of stock |
| 31 | EACJ2017 | Complete Engine | $1,766.97 |
Out of stock |
