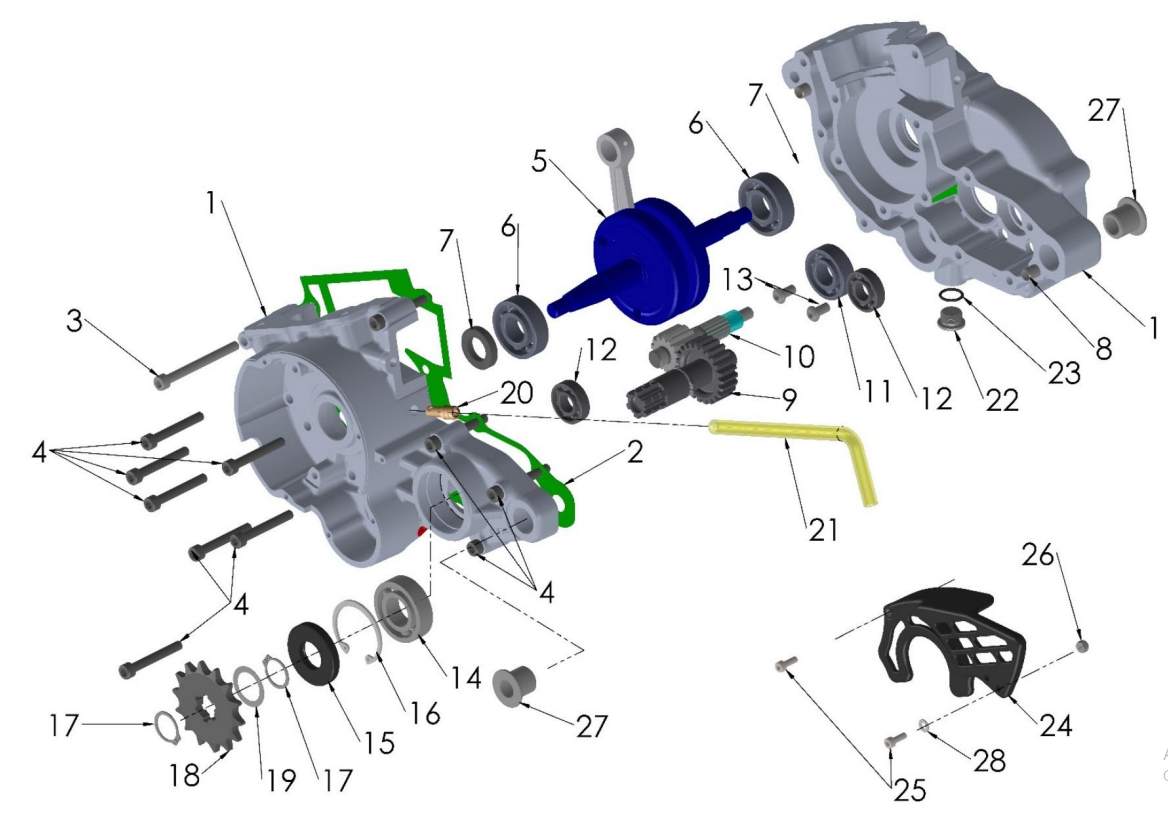

2022-CX50JR Parts- Engine- Bottom End and Transmission

2022-CX50JR Parts- Engine- Bottom End and Transmission
Add to Cart
Note: Products marked with an asterisk (*) are currently out of stock and on backorder. They may take additional time to deliver and will not arrive with the rest of your order.
Ref # Part # Image Product Price Quantity
1 EKMU0016 CRANKCASE SET WITH BEARINGS, SEALS & GASKET* $0.00
2 ZCMU0015 GASKET - CENTERCASE - CX50 VENOM* $14.33
3 HCBC0665 M6 X 65 SHCS ZINC* $1.54
4 HCBC0604 M6 X 35 SHCS ZINC $1.09
5 ECMU0258 CRANKSHAFT - CX50 - VENOM* $261.37
6 ECMU0016 BEARING - 50CC CRANKSHAFT & 65CC TRANS $22.12
7 ECMU0118 SEAL - CRANKSHAFT - 50CC STD $11.44
8 ECMU0122 DOWEL - HOLLOW - 8.4 x 14 x 7 - AISI 1215 $2.20
9 ECMU0999 GEAR OUTPUT WIDE TOOTH 50* $165.67
10 ECMU0268 GEAR - INPUT TRANSMISSION - CX50 VENOM* $133.40
11 ECMU0001 BEARING - TRANS. SEC. GEAR* $22.12
12 ECKG0031 BEARING 6001 NO SEALS* $9.88
14 ECKGBR01 BEARING OUTPUT- 50 & 65 $29.91
15 ECMU0236 SEAL OUTPUT - CX50 VENOM $10.99
16 ECMU0237 SNAP RING - OUTPUT BEARING - CX50 VENOM $3.87
17 ECKGSR03 SNAP RING-OUTPUT- ext 20mm - FOR OUTPUT SHAFT $2.54
18 PCKG0015 SPROCKET 15T* $18.78
19A ECMU0176 SHIM - SPROCKET - 0.2 THK 20/28 ID/OD $3.32
19B ECMU0177 SHIM - SPROCKET - 0.3 THK 20/28 ID/OD $3.32
19C ECMU0178 SHIM - SPROCKET - 0.5 THK 20/28 ID/OD $3.32
20 ECMU0233 R/B ECMU0233P - VENT HOSE NIPPLE (LARGE)* $9.88
21 ECMU0557 HOSE CRANKCASE VENT 2010 - CURRENT 50cc* $8.88
22 ECMU0272 PLUG - OIL FILL OIL DRAIN COOLANT VENOM* $12.11
23 ZCMUB014 O-RING - KICK SHAFT & OIL FILL PLUG $1.42
24 ECMU0280 GUARD - COUNTERSHAFT SPROCKET - CX50 VENOM $33.25
25 HCBC0412 M4 X 12 - SHCS - ZINC* $1.09
26 HCNL0401 4MM LOCK NUT $1.09
27 ECC60028 BUSHING - ENGINE PIVOT - 12MM $13.22
28 HCWF0401 4MM FLAT WASHER $0.53
ZKMU2016 GASKET KIT - COMPLETE - 50CC VENOM* $65.52
EACJ2017 ENGINE - 2017 - 2018 - CX50JR/P3 - VENOM* $1,666.97
