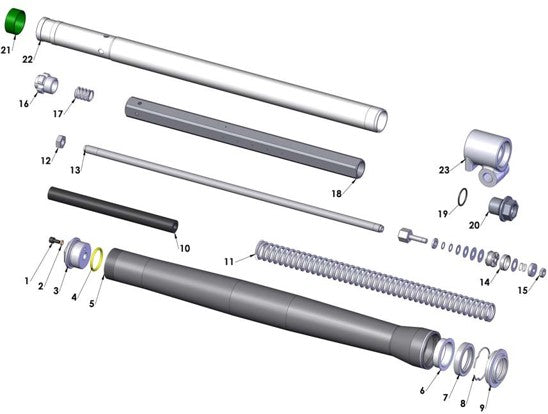

2012 Cobra 50SR (King) Parts – Forks – Leg Assembly – Non-brake Side

Ref #	Part #	Product	Price	Quantity
1	HCBC0408	M4 X 8 SHCS CLEAR ZINC	$1.09
2	ZCKG0001	GASKET BLEED SCREW FORK	$0.86
3	KCKG0047	FORK CAP 06 KING	$38.81
4	ZCMUOR08	O-RING GASKET FORKCAP & CYL. HD	$2.20
5	KCKG0121	FORK - OUTER TUBE 30MM	$210.18
6	KCKG0051	R/B KCKG0051L FORK - BUSHING 30MM	$16.56
7	KCMU0007	FORK - SEAL - 30MM	$13.88
8	KCKG0052	FORK - WIRE RETAINER 06	$5.43
9	KCKG0008	FORK - SWIPER 30MM	$16.56
10	KCKG0048	HOSE FORK BOTTOMING 06 KING	$10.55
11	KCKG1206	OBSOLETE - FORK SPRING 06	$36.59
11	KCKG1223	FORK SPRING 06 LIGHT	$36.59
11	KCKG1227	FORK SPRING 06 HEAVY	$36.59
12	HCNJ0038	NUT – DAMPER ROD	$0.00	Back Order
13	KAKG0001	DAMPER ROD ASSY 06 KG	$61.07
14	KCCS0018	FORK - MID VALVE GLIDE RING	$9.88
15	HCNJ0006	R/B HCNJ0601 M6-1.0 THIN HEX JAMNUT	$1.09
16	KCCS0001	R/B KCMU0013 - FORK - CARTRIDGE CAP	$28.80
17	KCKG0050	FORK - TOP OUT SPRING	$8.77
18	KCCS0025	FORK - CARTRIDGE TUBE 5 STAR - SMART LEG	$72.20
19	ZCKGB017	O-RING FORK BOTTOM PLUG	$2.20
20	KCCS0024	FORK - BOTTOM PLUG PLAIN	$41.04
21	KCKG0049L	R/B KCKG0049LM - FORK - GLIDE RING - 30MM LOOSE	$14.33
22&23	KAKG0145	FORK LOWER COMPLETE, NONBRAKE	$105.58
