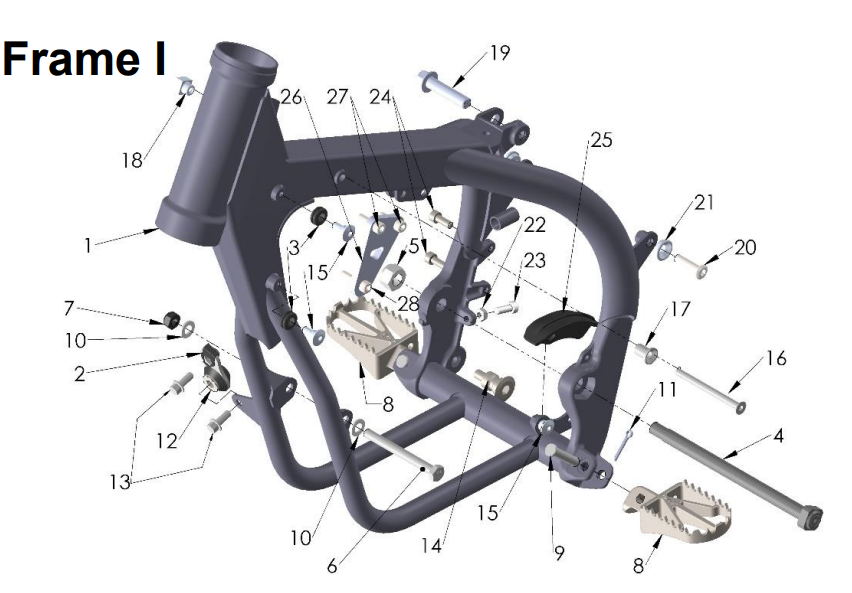

2022 CX50SRx FWE Parts – Frame I

Item	Refrence #	Title	price	Quantity
1	HCHA0003	6mm clip nut (mounts to fender to hold seat)	$2.18	Out of stock
2	MCMUGR12	Grommet, radiator mounting (4 req’d)	$4.98	Out of stock
3	GCMU0021	Bolt - Ti - Swingarm Pivot And Axle - Cx50- Shorter	$143.48	Out of stock
4	HCNL1201	M12 Swingarm Lock Nut	$3.18	Out of stock
5	HCBH0880	M8x80mm hex head bolt	$6.68	Out of stock
6	HCNL0801	M8 Locknut	$1.08	Out of stock
7	TCMU0139	Footpegs (pair)	$77.78	Out of stock
8	FCMU0031	Clevis pin - footpeg	$4.38	Out of stock
9	HCWF0801	8mm flat washer	$0.58	Out of stock
10	HCCP0008	Cotter pin 1/8 x 3/4	$0.58	Out of stock
11	XCMU0033	Isolation mount – exhaust	$18.38	Out of stock
12	HCBF0616	M6x16mm flange head bolt (2 req’d)	$1.08	Out of stock
13	BCMU0027	Brake pedal pivot bolt	$22.18	Out of stock
14	HCSP0610	Large head shouldered bolt	$3.18	Out of stock
15	HCFH0675	M6x 75 flat head screw zinc	$0.00	Out of stock
16	TCMU0047	Bushing - fuel tank	$0.00	Out of stock
17	TCMU0017	Bushing – fuel tank - square	$9.88	Out of stock
18	HCBF1040	M10x 40 hex head bolt	$7.68	Out of stock
19	HCSP0701	Sprocket bolt – m7	$2.78	Out of stock
20	FCMU0109	Compression limiter – sub frame	$10.58	Out of stock
21	HCNL0601	M6 Locknut	$1.08	Out of stock
22	HCBC0601	M6x 16 shcs	$1.08	Out of stock
23	TCMU0044	Lower chain slide	$16.58	Out of stock
24	HCBC0601	M6x 16 shcs (2 Req’d)	$1.08	Out of stock
25	HCBC0625	M6x25mm socket head cap screw	$1.08	Out of stock
26	HCNL0601	M6 Lock Nut	$1.08	Out of stock
